7 Inch LCD Screen Portable Veterinary Ultrasound Scanner Cattle Cow Pig sheep Horse farm Ultrasound pregnancy testing Machine

Product name: 7 Inch LCD Screen Portable Veterinary Ultrasound Scanner Probe Ultrasound Machine for Cattle Cow Pig Sheep

——–MD9000V is the best choice for every veterinarian.

Features of veterinary ultrasound machine

1. This machine can be equipped with two types of probes，one is CXA50R/3.5MHz Convex Probe suitable for pig sheep . The other one is LNA64/6.5MHz Linear rectal probe suitable for cattle horse camel.

2. Excellent control of body weight, the total weight (including battery) no more than 900g, more portable handheld work;

3. Good shell reinforcement design ,the products can adapt to the farm and wild and rugged working environment;

4. Excellent display technology, which can adapt to both the weak light and bright light image display performance.

Product advantages

Standard configuration

NOTE

-1. Buy 1 set veterinary ultrasound machine, our store will give 10 pcs long arm veterinary gloves +power adapter plug used in the customer’s country as gifts.

Type		MD-9000V Portable veterinary ultrasound
Probe		LNA64/6.5MHz Linear Rectal Probe	CXA50R/3.5MHz Convex Probe
Scan depth(mm)		≥80	≥140
Resolution (mm)	Lateral	≤1( depth ≤60)	≤3( depth ≤80) ≤5(80< depth ≤130)
	Axial	≤1( depth ≤80)	≤1( depth ≤80)
Blind area (mm)		≤3	≤6
Geometric position Precision (%)	Horizontal	≤5	≤7.5
	Vertical	≤5	≤5
Monitor		7 inch TFT-LCD
Display modes		B,B+B,B+M,M,4B
Gray scales		256
Image permanent storage		128 frames
Gain range		0-192dB(adjust range 64-192dB)
Cine-loop		≥400 frames
Scanning depth		70mm-240mm
Image conversion		up/down, left/right
Body marks		16
Image process		Faked color, gray calibration, image smooth and histogram.
Frequency adjustment		3
Frame correlation adjustment		Support
Measuring functions		Distance, circumference, area, volume, EF rate
Comment		date & time, name, PID, sex, age, doctor, hospital, annotation

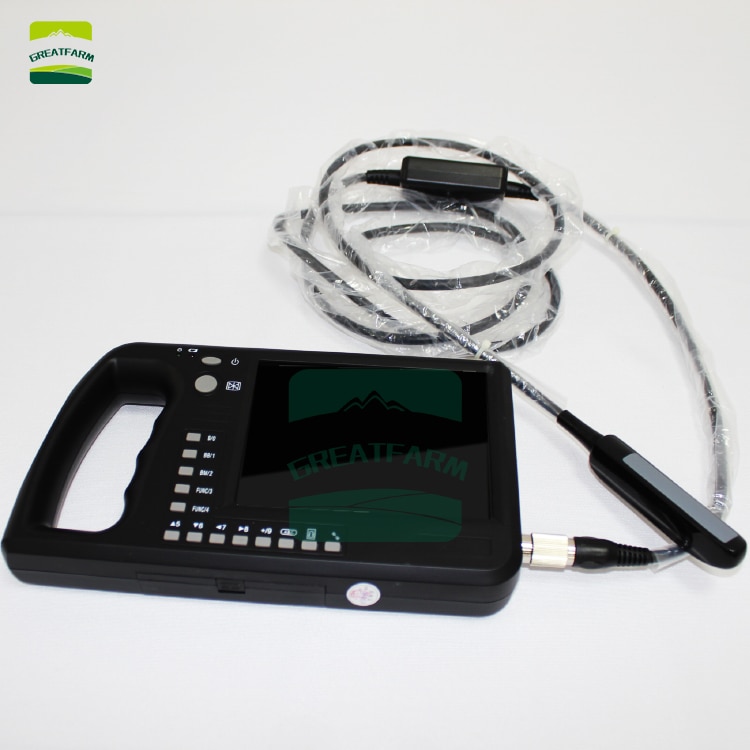

1-Cow and horse rectal probe MD9000V

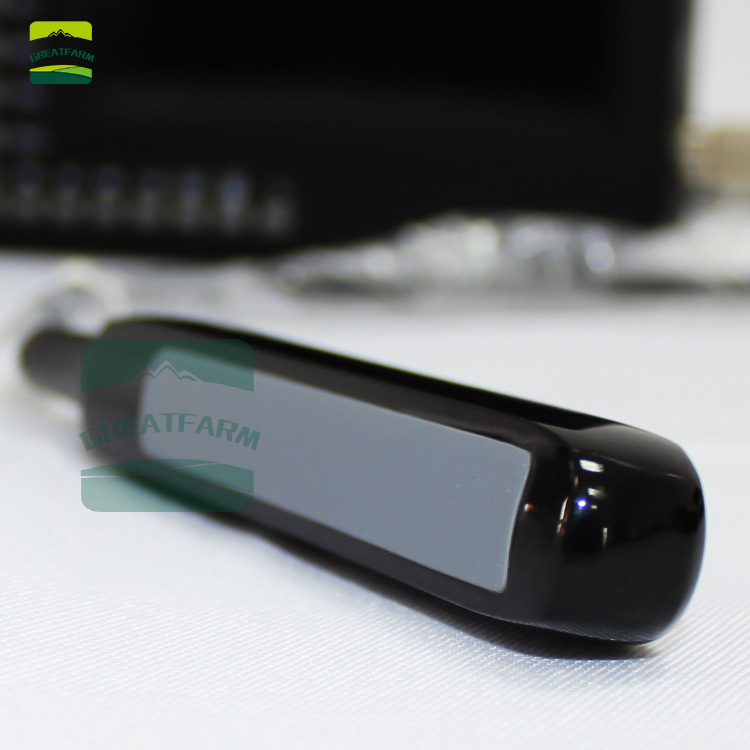

NO.1 6.5MHZ Rectal Probe –Positive

NO.2 6.5MHZ Rectal Probe-BACK

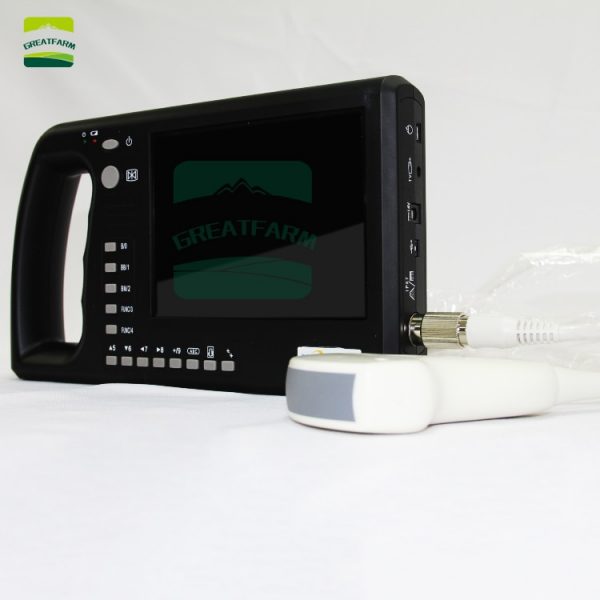

NO.1 3.5MHZ Convex Probe –Positive

NO.2 3.5MHZ Convex Probe –BACK

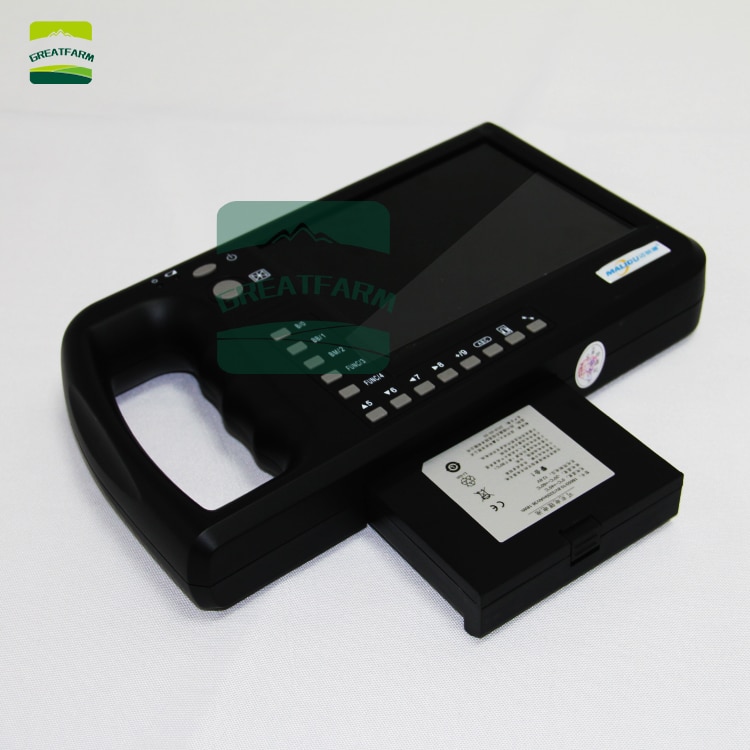

NO.3 Host Machine Back Display

NO.4 Ultrasonic machine integrated display

NO.5 Probe Socket Display

NO.6 USB interface display

NO.7 Port Area Detail Display

NO.8 Accessories Display

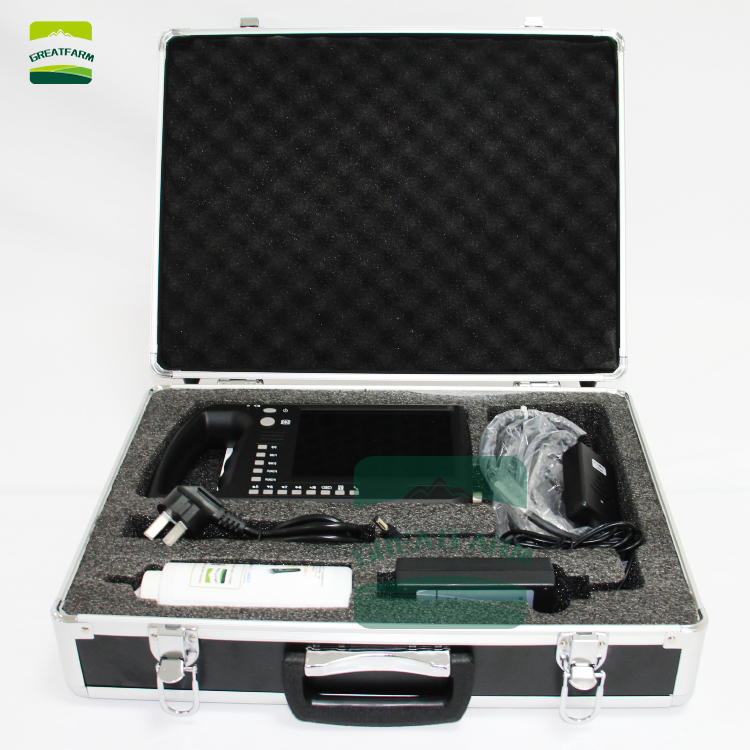

NO.9 High-end Aluminum Box Packaging
