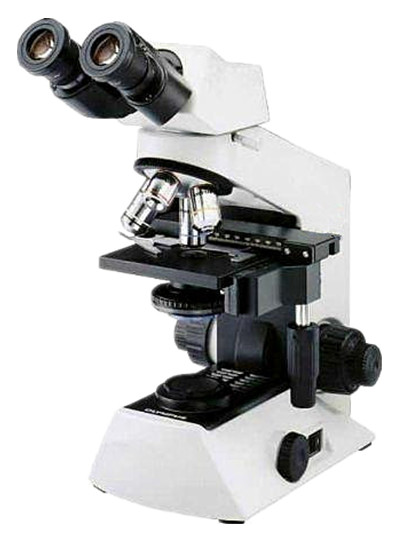

Name: POWERED LED 40X – 1600X MAGNIFICATION BINOCULAR COMPOUND MICROSCOPE INFINITY CORRECTED OPTICS
SKU: HMXSZ-169-B
Price: 50000.00 PHP
Availability: InStock

Microscope Product Overview

Superior Quality Infinity Corrected Professional Compound Binocular Microscope!
Infinity-Corrected Objectives for Better Quality!
NOT Student Grade! This is a More Expensive Professional Grade!
If Price is Everything to You, Please Close this Ad, as This Scope is Not for You.
If it is Important that You get a High Quality Image, without Spending $3000 – $4000 from a Name Brand, then Continue!
This has the Higher Grade, More Expensive Semi-Plan Objectives for Optimal Quality!
Great for Doctors, Veterinarians, Medical Technicians, Scientists, Research Labs.
Compare to Similar Units costing $3000+ with name brands!
Excellent Bright and Clear Images through High Quality Optics.

Eyepiece Details – Magnification

· Eight Magnifications: 40x, 64x, 100x, 160x, 400x, 640x, 1000x and 1600x.

· Two Eyepiece Sets Included: 30mm Diameter Wide Field 10x and Wide Field 16x.

· Four Plan DIN Infinity Corrected Objectives: 4x, 10x, 40x, 100x (Oil Immersion).

· These Semi-Plan Objectives are Better Quality and More Expensive than the Cheaper Achromatic on most Scopes.

· Spring Loaded 40x and 100x Objectives to Protect Slides.

· Reverse Facing Quadruple Nosepiece! A Better Design that allows Easier Access to the Slides since Objectives are Pointed Out of the Way!

Microscope Illumination

· High Wattage Variable Intensity LED Transmitted Base Illumination.

· If you find a cheaper scope, ask if it is made to accommodate the higher wattage 3W bulbs that provide a Brighter Image. It is Important for Regular Bright field work and Essential for Phase Contrast and Dark field.

· Koehler Illumination System with Focusable Field Diaphragm on Base to allow for Better Control and more Efficient Use of Light Source. This gives Improved Image Quality!

· Koehler is Important for Regular Bright field Work and Essential for Phase Contrast and Dark field.

· Few Scopes have the More Expensive Koehler Illumination System. If you see a Cheaper Scope, ask if it has Koehler.

Microscope Head Details

· 30 Degree Inclined Binocular Head (Easier to View than 45 Deg.) Rotatable 360 Degrees.

· Adjusts to the Distance Between your Eyes: 48 to 75mm Inter Pupillary Distance.

· Diopter Adjustment to Correct for Your Specific Vision Needs

Condenser – Iris – Filters

· 1.25 N.A. Abbe Substage Condenser, Condenser Movement Knob, Iris Diaphragm and Swing-Out Filter Holder.

· Condenser Alignment Screws.

· Rack and Pinion Steel Gears for Easy and Better Condenser Movement.

· Three Filters Included: Blue, Green, Yellow.

Stage Specifications

· Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 180 x 160mm.

· The Stage Movement in the Longitudinal Y-Direction is a Great Option Found Only on More Expensive Models!

· Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 75mm (X-Direction – Slide Movement) x 50mm (Y-Direction – Stage Movement).

Focusing

· Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.

· Coarse Adjustment Travel Range: 20mm. (Stage Movement Distance Up/Down).

· Fine Adjustment Division: 0.002mm.

· Adjustable Lock Ring Stop to Limit Coarse Range to Protect Slides.

· Tension Adjustable Coarse Focusing.

Other Details

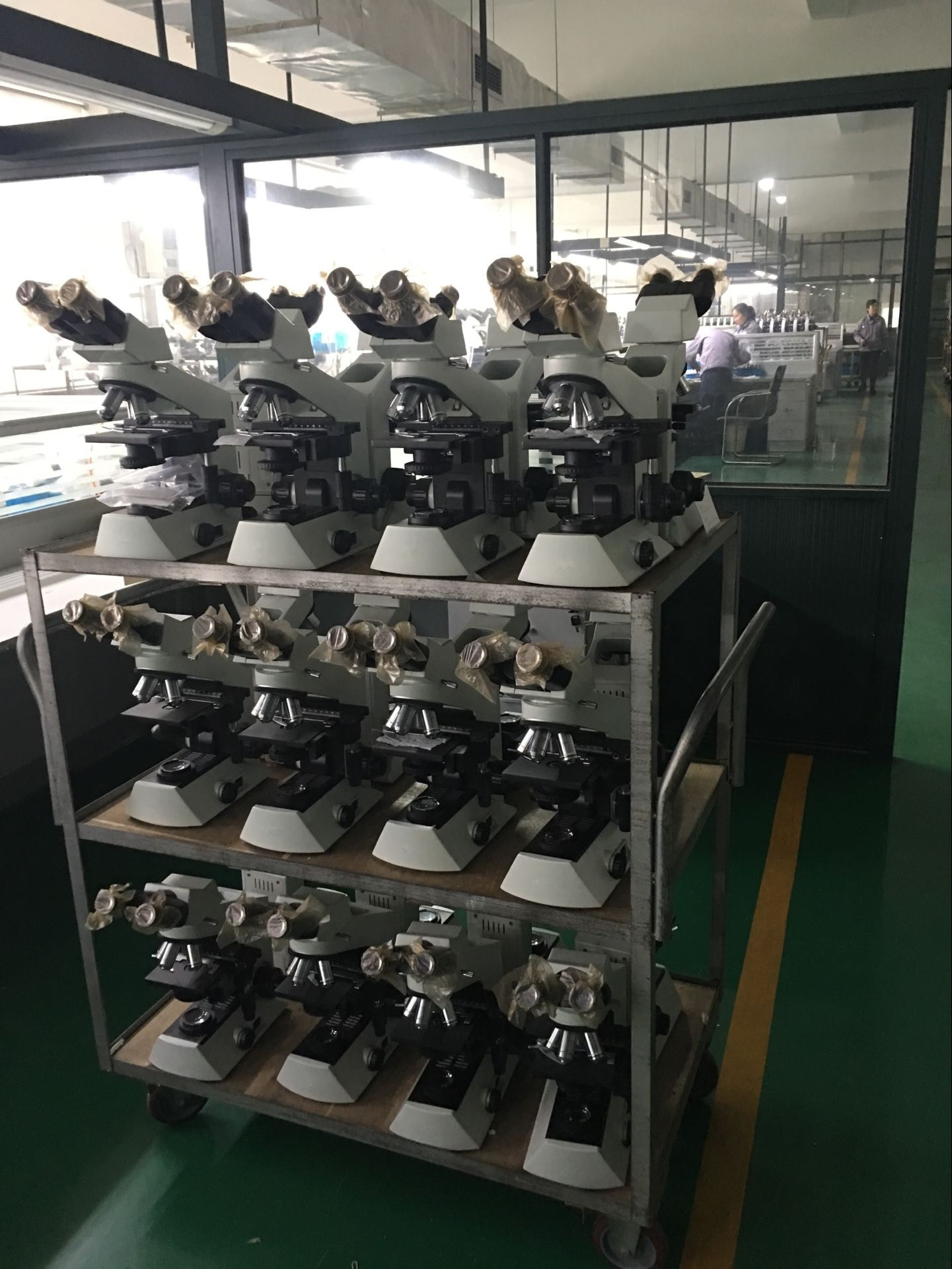

Microscope manufacturing factory certified ISO: 9001 compliant.
All optical lens are precision ground glass for premium optics and durability.
Frame of microscope is sturdy and made of metal.
Voltage 220V.
All microscopy items are always 100% Brand New! We do not sell used microscopes or used parts.

Manufacturer\’s Warranty

1 YEAR Manufacturer’s Warranty on Microscope and accessories.
The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
If your system needs repair, simply let us know and we will see that it is back in service ASAP.
