μHandy Microscope Portable Transmitted Light Microscope

Product Overview

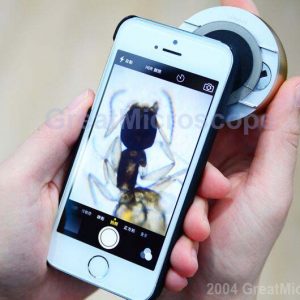

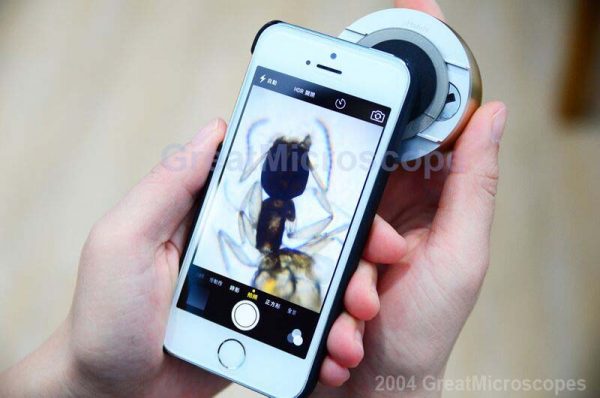

• Support most smartphones/tablets
  •    μHandy turns most smart-devices into a miniaturized microscope. It replaces traditional microscope, CCD camera, and desktop. Through disruptive innovation, everyone could be a scientist/biologist in the microscopic world.
• Simple to use
  •    μHandy provides outstanding user experiences. We simplify the microscopic operation and lower the barrier to entry. You can use your own camera App to freely explore the charming small world.
• Amazing optical performance
  •    μHandy supports conventional glass slides for biological observation. Its superior optical performance facilitates observation/analysis of cells, tissues, and any other micro-scale features.

Special FeaturesUltra-High Optical Resolution Up to 1 µm
•    μHandy’s aspheric lens was designed using optical simulation software for best single lens microscopy. 1μm optical resolution was proven scientifically by black and white line pairs (500 line pairs/mm).

Auto-Focus
•    μHandy microscope no needs focus adjustment.
•    Intuitive design simplifies the microscope operation.

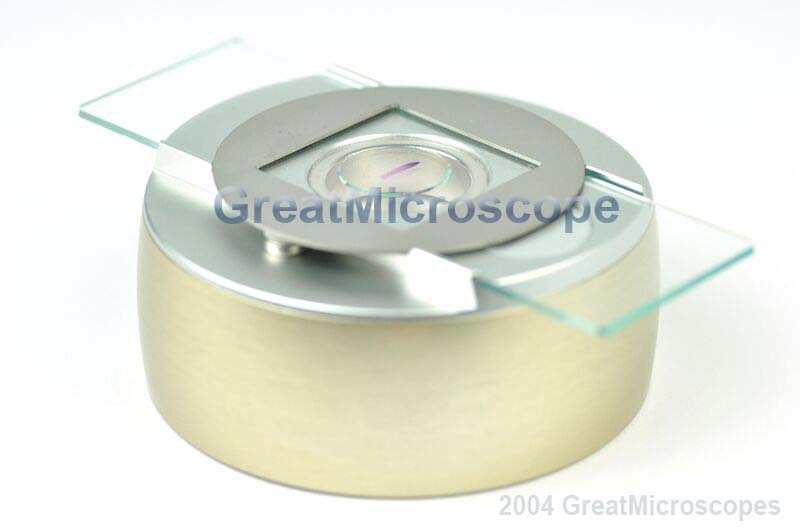

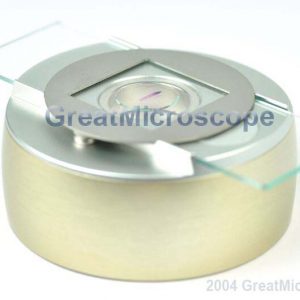

Compatible with Glass Slide
•    µHandy microscope is compatible with conven- tional glass slide.
•    Samples can be viewed and scanned within 22×22 mm area.

Pocket-size

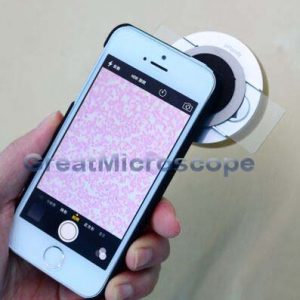

•    μHandy is integrated with smart devices to replace conventional microscopes, CCD camera and computer.
•    With μHandy microscope, every- one could be a scientist/ biologist in microscopic world.
•    Most similar scopes are not independent, so the intensity is adjusted for both upper/lower simultaneously with one knob.Independent Variable Intensity Dual Halogen Upper and Base Illumination.

Head – Interpupillary Distance – Diopter
•    μHandy provides outstanding user experiences.
•    We simplify the microscope operation and lower the entry barrier.
•    You can use your own camera App to freely explore the charming small world.

Share Instantly
•    μHandy microscope allows you to instantly capture and share micrographs anytime, anywhere.

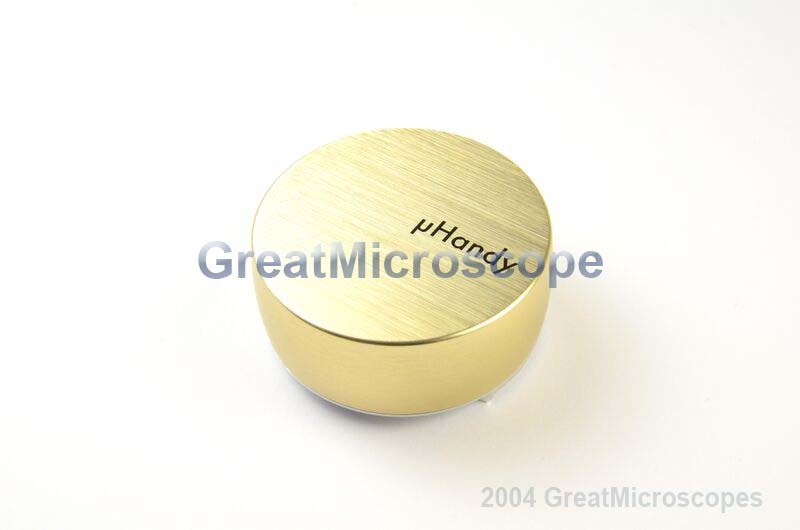

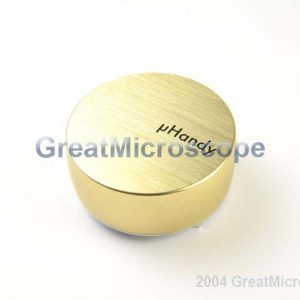

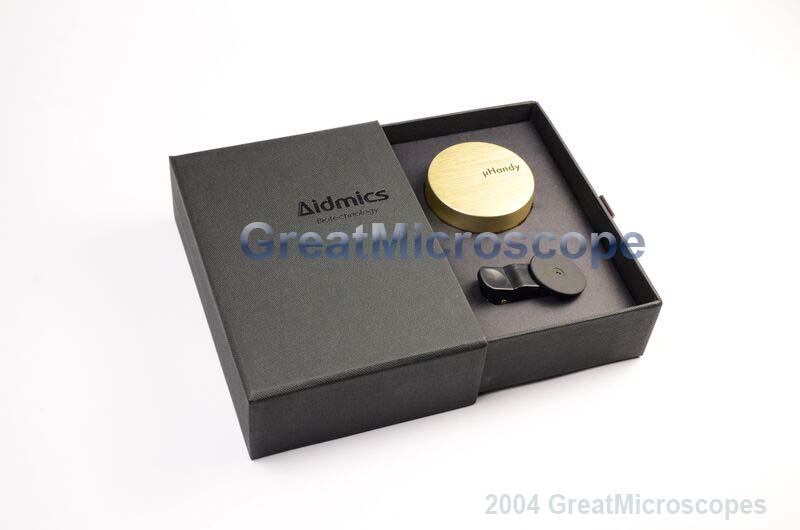

Product concept Designed & Manufactured in Taiwan
•    With its ergonomic design, the aluminum alloy gadget provides both durability and aesthetic experience.
•    Aidmics upholds the spirit of excellence in design and manufacturing.

Handy Specification:

Optical lens    •    Single Lens

Resolution    •    Up to 1μm (500 line pair/mm)， Depends on smart-devices, e.g., iPhone 5s for 1.5μm.

Field of view (FOV)    •    1mm in diameter.

Magnification rate    •    FOV comparable to 200X microscope.
•    Screen magnification rate depends on smart-devices, e.g., Apple iPad mini is in the range of 65X-300X(Zoom in/out).

Physical features:

Material    •    Aluminum, Stainless steel.

Dimensions    •    Diameter：58mm cylinder
•    Height：25mm (Optical lens not included)
•    Weight:65g (Battery included)

Power System

Battery type    •    LR44 x 3 ◎Voltage：4.5V
Battery life    •    Longer than 30hr

Universal clip    •    Distance from the camera center to the phone edge shoud be less than    2.4cm, e.g., HTC One M8 (MAX) and ASUS ZenFone 5/6 are not supported.

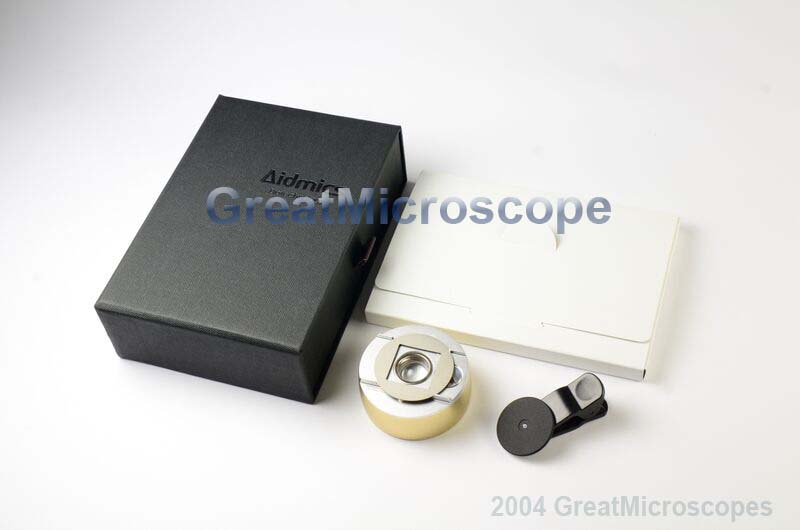

Included Items:

• Lo-Mag Lens (with one Sample Cap installed)
• Sample Caps (3 pcs)
• Sampling Stickers (90 pcs of flat stickers and 90 pcs of bubble stickers)
• Sample Hubs (60 pcs)
• Collecting Album
• Sample Card (with 1 sample)

Cases (Optional)    •    Apple iPhone 5(s)、6、6 Plus ◎Apple iPad Air
•    Apple iPad mini (1、2、3) ◎HTC one M7、M8
