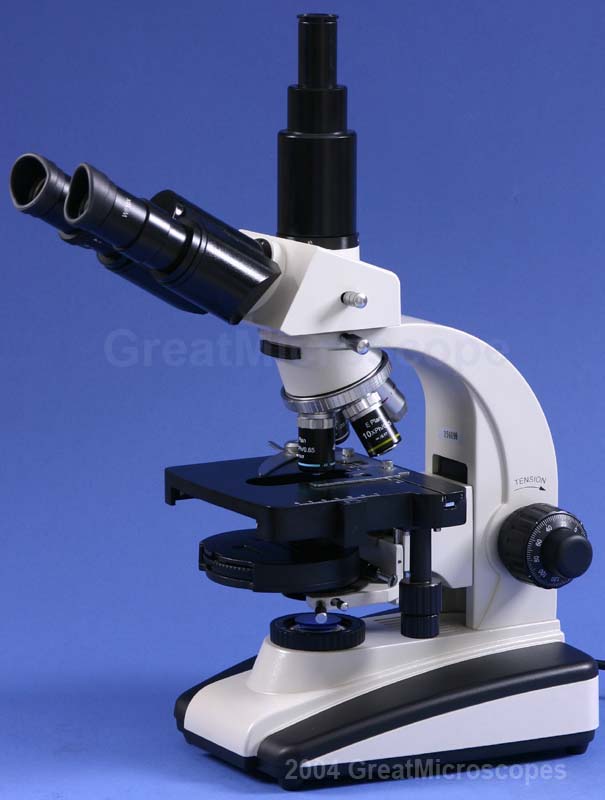

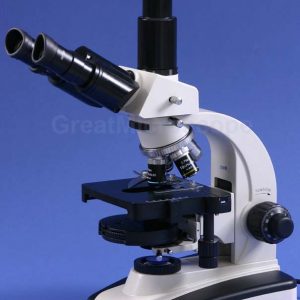

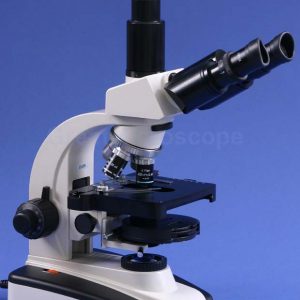

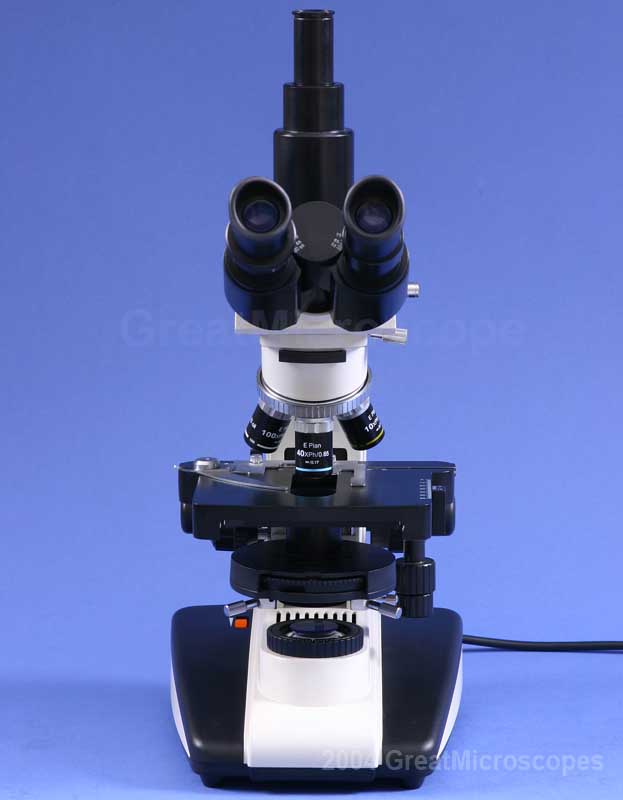

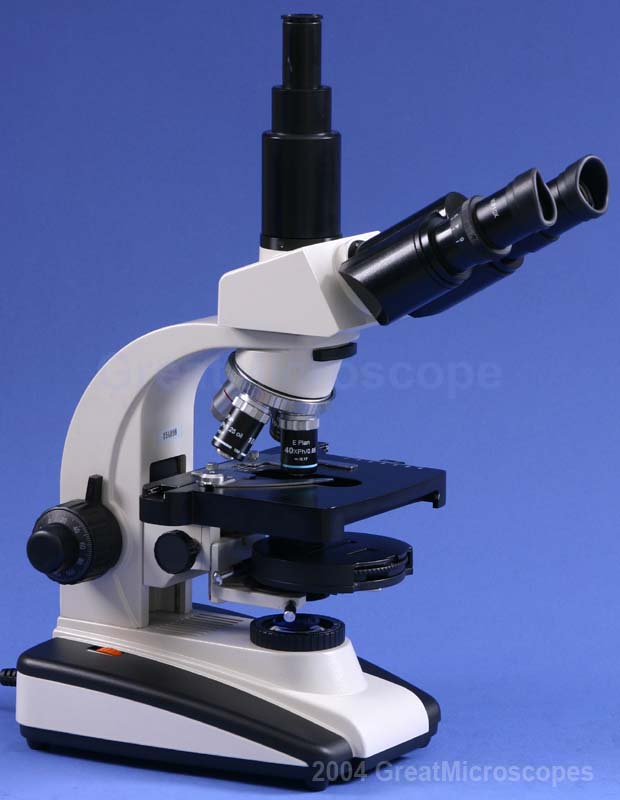

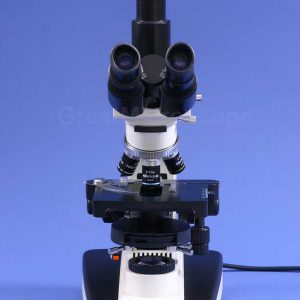

40X – 1600X MAGNIFICATION TRINOCULAR COMPOUND MICROSCOPE INFINITY CORRECTED OPTICS W/ ALUMINUM CARRYING CASE W/ PLAN PHASE CONTRAST KIT

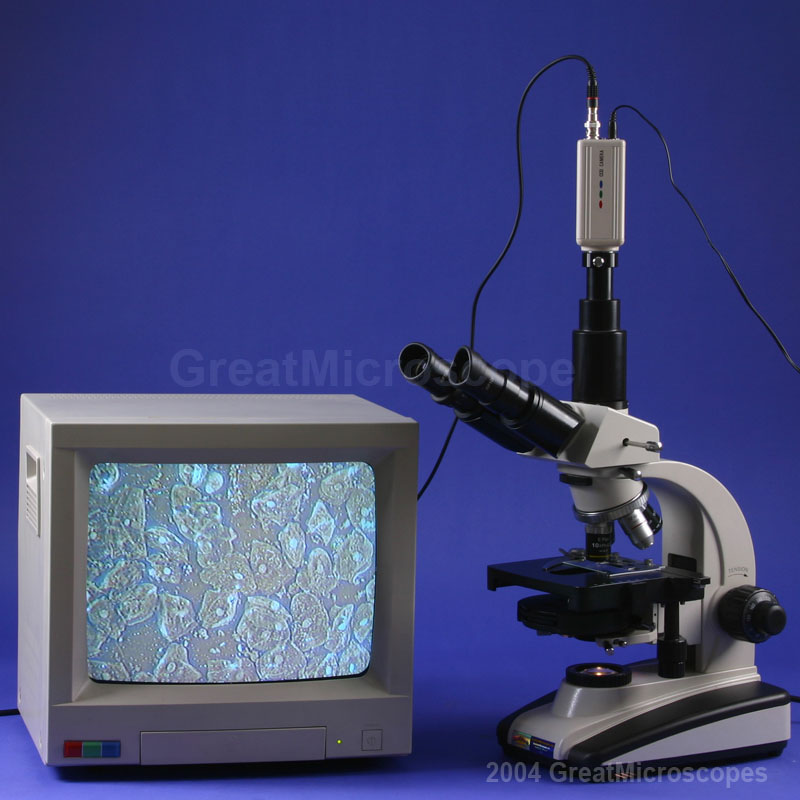

Trinocular Photography Port

• Photograph Your Own Specimens!
• Have Your Own Complete Digital Video Microscopy System!
• Capture Images With Your Computer!
• Display Images on a High Resolution CCTV Monitor or Television!
• Videotape What You See Under the Microscope!
• Versatility – Included Trinocular Port Greatly Expands the Usefulness adding Photographic/Video Capability!
• Other (not included) accessories may be required for connecting digital/film cameras, CCD cameras and Video cameras. Call or Email us your specific requirements.

Special Features

• Unique Ability to have Image in Both Oculars and Photo Port Simultaneously. This is Perfect for Training as the Binocular Eyepieces can be viewed by the Instructor, and Everybody Else can Watch the Viewing Screen. Most Trinocular Scopes lose light in one ocular when light is diverted to the photo port. This scope has the ability for 100% of light in both oculars, or divert light and get 20% light in oculars and 80% in trinocular.
• Features 30mm Eyepiece Ocular Tubes! Most compound scopes are 23mm. The larger size allows for less eye strain, much easier viewing, and a larger and better quality image! After looking into these awesome eyepieces, you would never want a smaller 23mm ocular! Before buying a different scope, ask if it has the cheap 23mm oculars!

Eyepieces and Magnification

• Features 30mm Eyepiece Ocular Tubes! Most compound scopes are 23mm. The larger size allows for less eye strain, much easier viewing, and a larger and better quality image!
• Eight Eyepiece Magnifications: 40x, 64x, 100x, 160x, 400x, 640x, 1000x and 1600x.
• Two Eyepiece Sets Included: 30mm Diameter Wide Field 10x and Wide Field 16x.

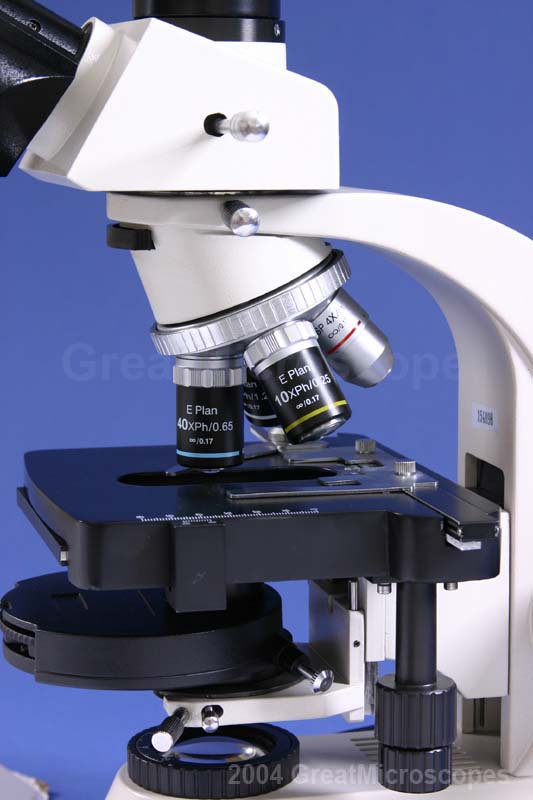

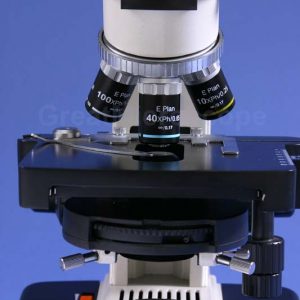

• Three E-Plan DIN Infinity Corrected Phase Contrast Objectives: 10x, 40x, 100x (Oil Immersion).
• Four Semi-Plan DIN Infinity Corrected Brightfield Objectives: 4x, 10x, 40x, 100x (Oil Immersion).
• These Plan and Semi-Plan Objectives are Better Quality and More Expensive than the Cheaper Achromatic on most Scopes.

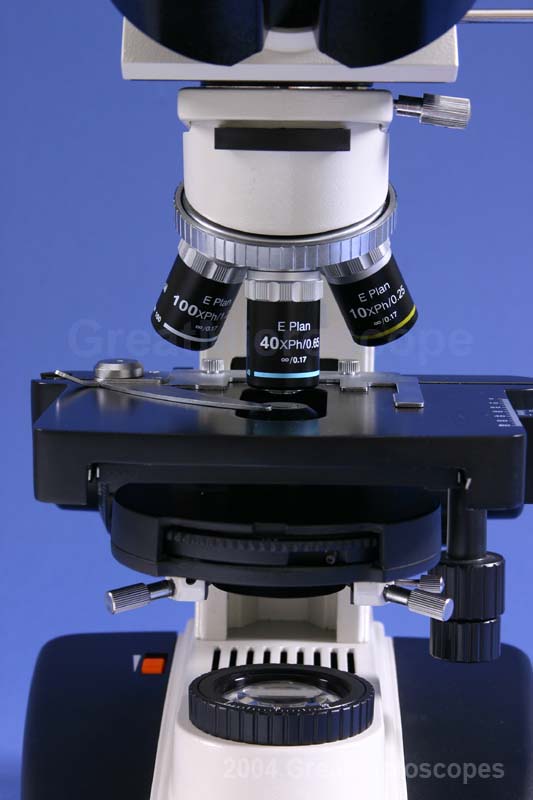

• Reverse Facing Quadruple Nosepiece! A Better Design that allows Easier Access to the Slides since Objectives are Pointed Out of the Way!

Microscope Head Details

• 30 Degree Inclined Trinocular Head (Easier to View than 45 Deg.) Rotatable 360 Degrees.
• Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
• Diopter Adjustment to Correct for Your Specific Vision Needs.

Condenser – Iris – Filters

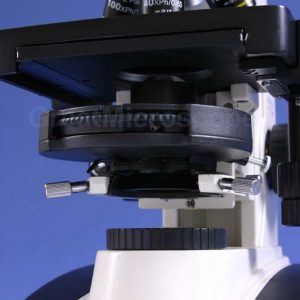

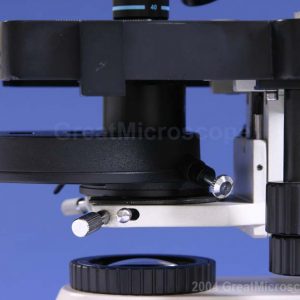

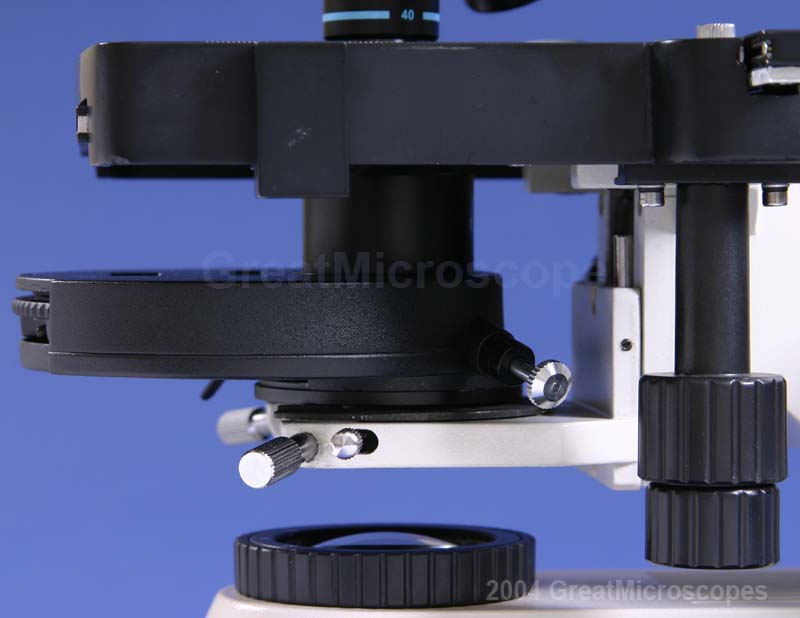

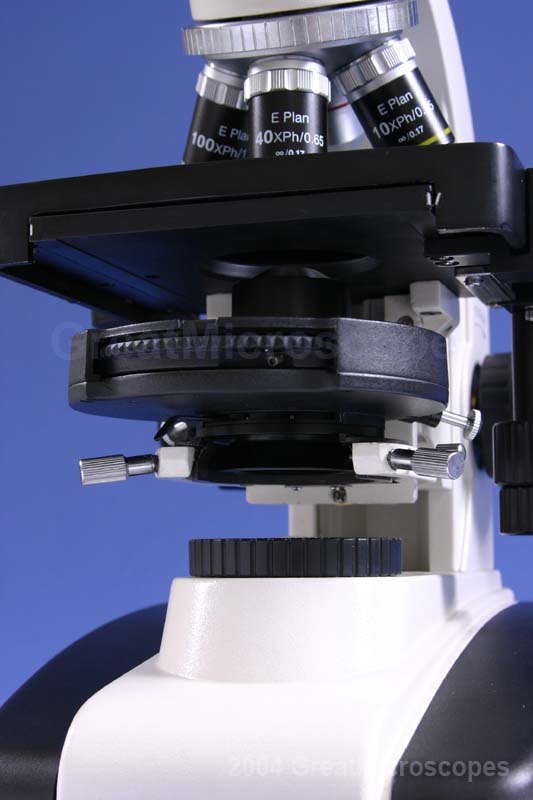

• Phase Turret Condenser with Settings for Darkfield (Dry), Brightfield, and for the Three Phase Annulus Rings: 10x, 40x, and 100x. Has Centering Knobs for the Phase Annulus Rings. Includes separate Phase Telescope for Viewing Alignment of Phase Annulus Rings. Includes Iris Diaphragm for use with the Brightfield Setting.
• Dry Darkfield Condenser Included on Phase Turret. Optional Separate Oil Immersion Darkfield Condenser.
• Brightfield Condenser: Additional Brightfield Condenser Included as Separate Item (not part of phase turret). 1.25 N.A. Abbe Substage Brightfield Condenser, Iris Diaphragm and Swing-Out Filter Holder. Three Filters Included: Blue, Green, Yellow.
• Condenser Alignment Mechanism.
• Rack and Pinion Steel Gears for Easy and Better Condenser Movement Up and Down.

Illumination

• High Power 3W LED Intensity Transmitted Light Located Directly Under the Light Collector for Maximum Efficiency. (Not the Externally Mounted Type that is Inefficient in Transmission.)
• Koehler Illumination System with Focusable Field Diaphragm on Base to allow for Better Control and more Efficient Use of Light Source. This gives Improved Image Quality!

Stage Specifications

• Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 153 x 145mm.
• The Stage Movement in the Longitudinal Y-Direction is a Great Option Found Only on More Expensive Models!
• Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 80mm (X-Direction – Slide Movement) x 52mm (Y-Direction – Stage Movement).

Focusing

• Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
• Coarse Adjustment Travel Range: 20mm. (Stage Movement Distance Up/Down).
• Fine Adjustment Division: 0.002mm.
• Adjustable Lock Ring Stop to Limit Coarse Range to Protect Slides.
• Tension Adjustable Coarse Focusing.

Frame – Base – Size – Weight

• Total Overall Height of Microscope: 495mm.
• Instrument Weight: 18 lbs.

Included Items

• Includes: Instructions, Dust Cover, Bottle of Immersion Oil, and Fuse.

Additional Information

• Manufactured under ISO: 9001 Standards.
• Precision Ground Glass Lens.
• Quality Construction, Metal Frame.
• 110 VAC (email about 220V availability).
• 100% Brand New!

5 Year Manufacturer’s Warranty

• The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
• If your system needs repair, simply let us know and we will see that it is back in service ASAP.

Warning

• Be careful about buying used equipment that might have scratched optics, delamination, missing/broken parts, dust/dirt on internal optics, head out of alignment (slight double vision, common!), bio-contamination, degradation of lubrication, and impossible-to-find or expensive replacement components on obsolete models. Just like buying an old car, the high cost of maintenance alone must be considered when making a purchase. If you buy used, what will you do if the light goes out and it’s not a burnt bulb? Microscope Repair is VERY Expensive!
• This is a Sophisticated Instrument. We have found that most customers call us after the sale for questions and support for this item. Beware of buying from an inexperienced peddler who knows little about their product. For example, we’ve seen others selling darkfield microscopes and actually calling them phase contrast microscopes because they didn’t know the difference! What will you do if you buy a scope from an inexperienced salesman and don’t obtain the quality images that you require? Who can you turn to for help? We have a fully trained microscopy support staff willing to assist you with your needs. All our photos are taken in-house by the same staff available to talk to you today. They are also available to assist you AFTER the purchase when you receive your equipment and are learning its operation.

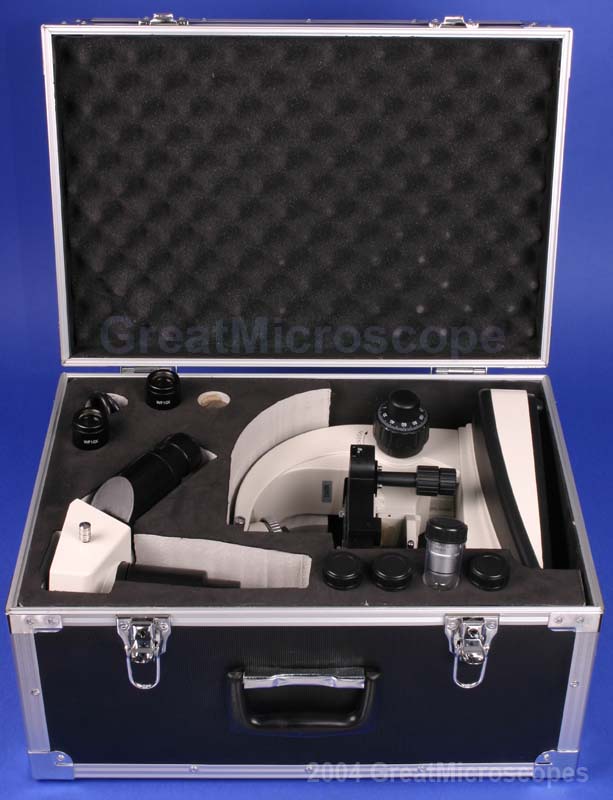

Aluminum Carrying Case

• BONUS: Includes an Aluminum Carrying Case with Precut Foam for safe transportation of your precision instrument.
