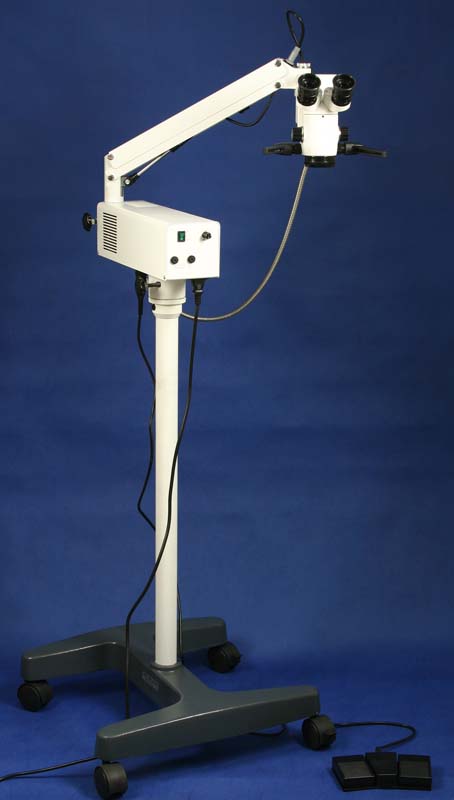

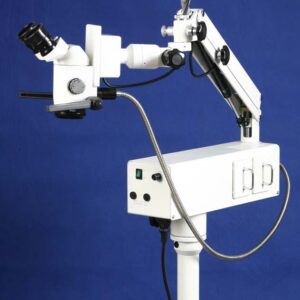

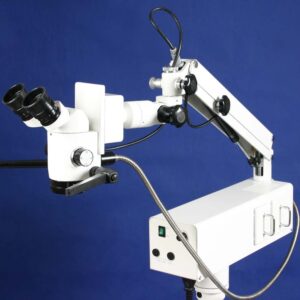

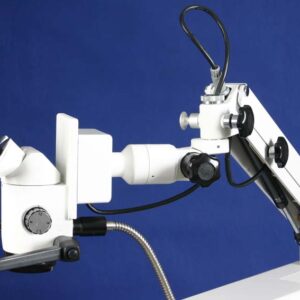

    DENTAL – ENT – OPHTHALMIC SURGICAL ARTICULATING MOBILE FLOOR STAND 5.3x – 8x – 12x BINOCULAR MICROSCOPE MOTORIZED FOOT CONTROLLED FOCUSING

    Call For Price

    Microscope Product Overview

    • Micro-Surgical Dental Ophthalmic ENT Operation
    • Binocular Microscope.
    • This Medical Surgical Microscope is useful for a variety of needs.
    • It is a well-built system with high-quality optics.
    •  For a similar unit, expect to pay about twice from any other source. You’re getting the same thing here.
    SKU: MS-110 Category:

    Product Description

    Microscope Product Features

    Boom Stand Specifications

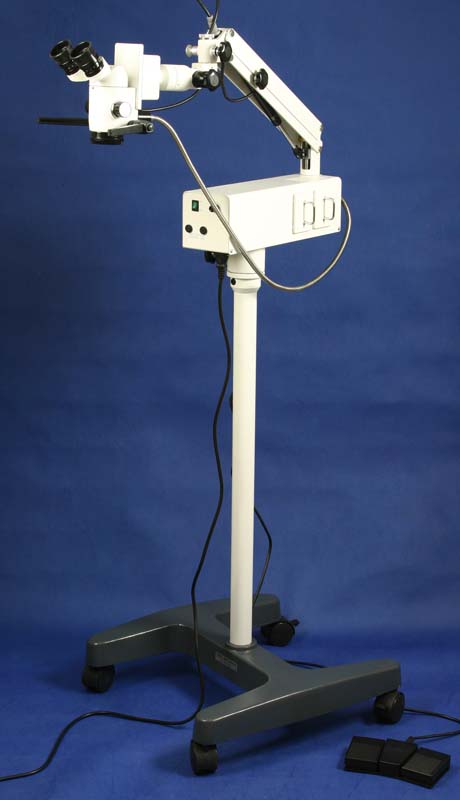

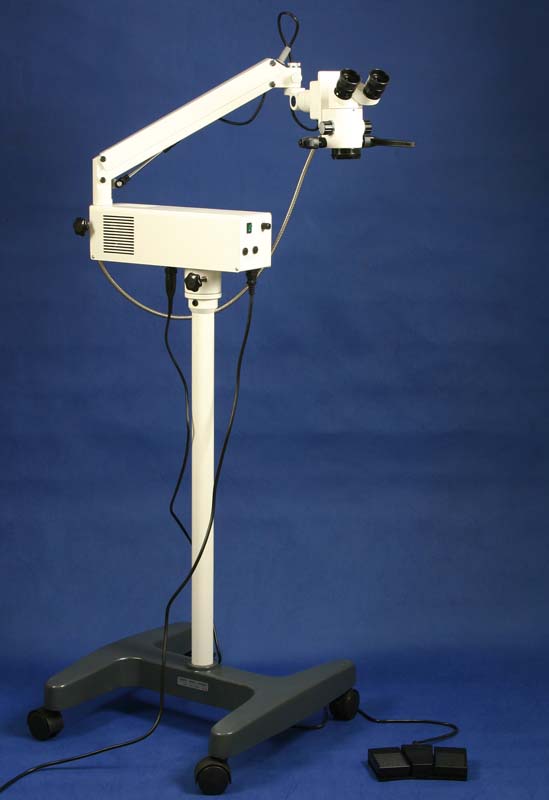

    • Mobile Floor Stand Mounted Articulating Boom for Maximum Versatility and Working Area!
    • Rollers on Four Feet for Excellent Mobility!

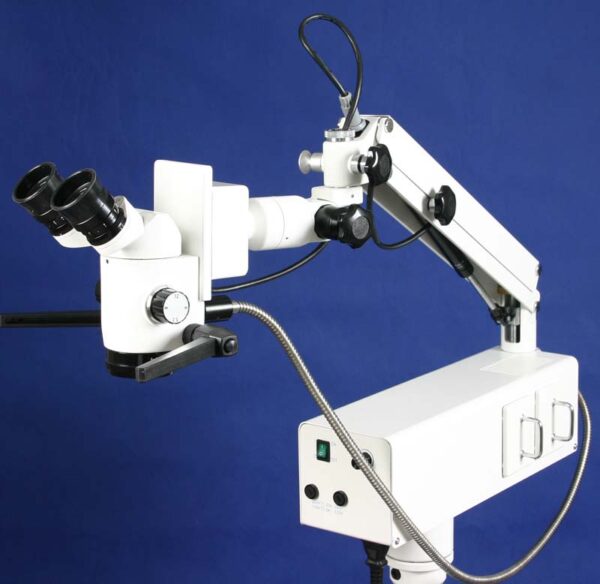

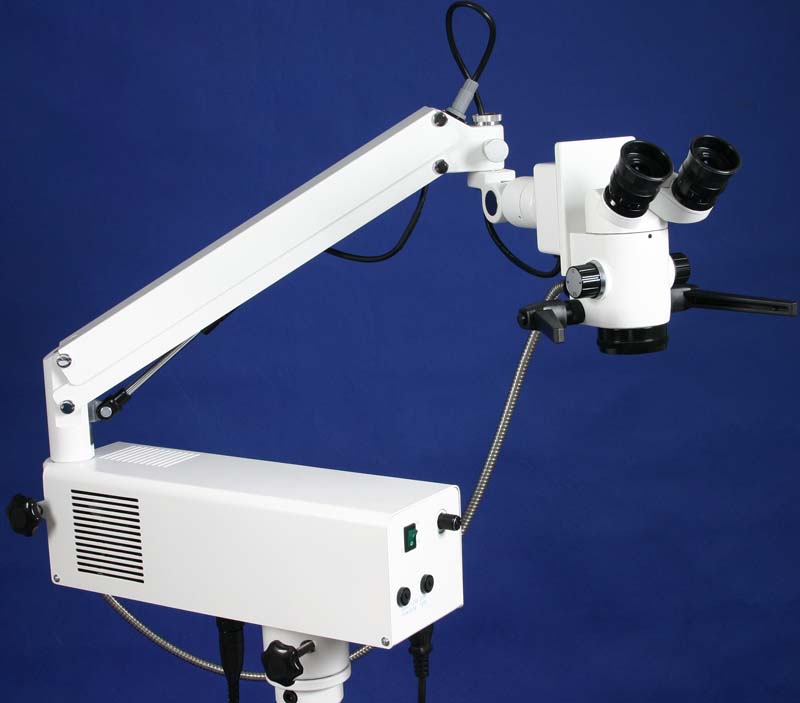

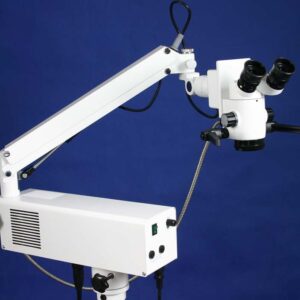

    • The hydraulic Articulating Boom Arm can be Pulled Toward the Working Area, and then Retracted Out of the Way!
    •  This unit has multiple degrees of freedom for rotation and movement and can be locked into place at each pivot point to allow for stable and fixed movement.

    Eyepieces and Magnification

    •  Three Magnification Levels: 5.3x, 8x, and 12x. Wit 12.5x Eyepiece set.

    Head – Interpupillary Distance – Diopter

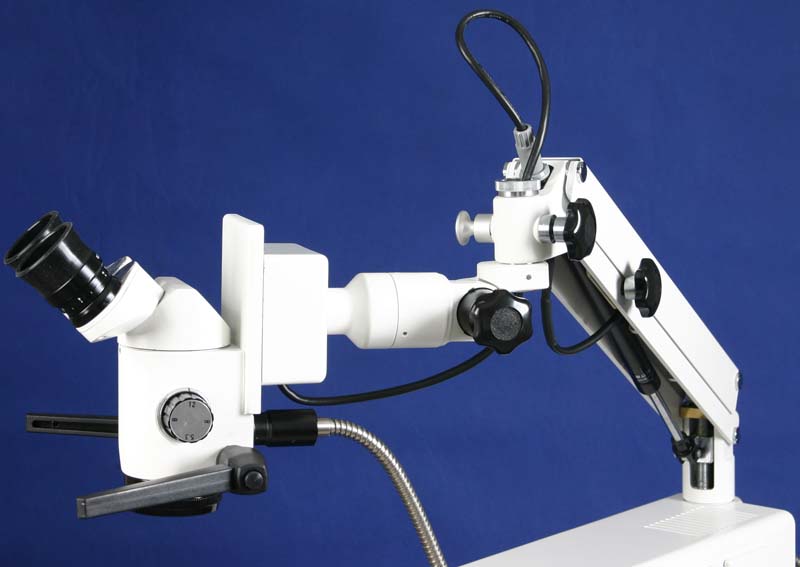

    • 45 Degree Inclined Binocular Head.
    •  Adjusts to the Distance Between your Eyes: 40 to 80mm InterPupillary Distance.
    • Diopter Adjustment on Both Oculars to Correct for Your
    • Specific Vision Needs.

    Illumination

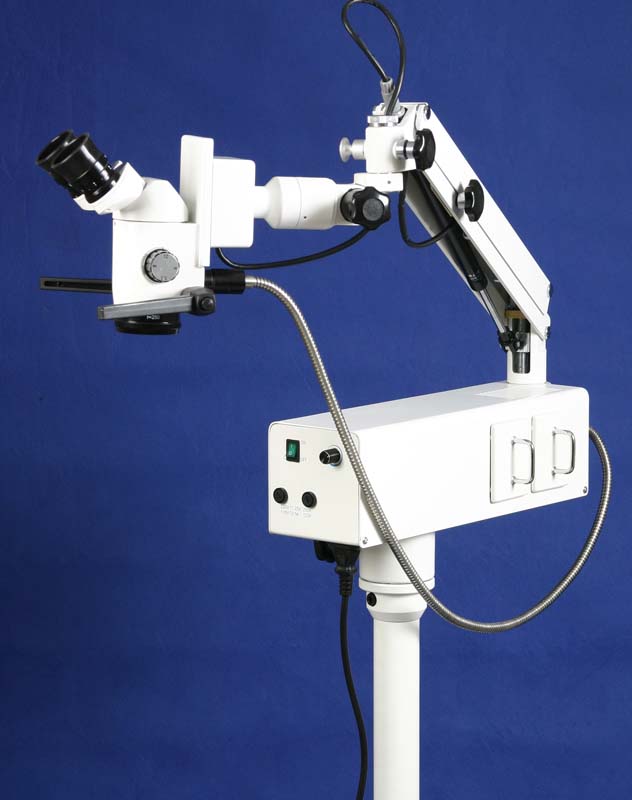

    • Coaxial Through The Lens Fiber Optic Illumination.
    • Variable Illumination Intensity Control.
    • High Wattage 100W Halogen Bulb with fan-cooled
    • Housing.
    • Includes Built-In Spare Bulb for Simple, Easy, and Instant Replacement of Bulb.
    • Fiber Optic Cable from Light Source to Microscope
    • Head.
    • High-Intensity Illumination: 30,000+ Lux

    Focusing and Working Distance

    • Motorized Focusing via Foot Control Switch keeps hands free for other use.
    • Includes F250mm Objective that provides 250mm
    • Working Distance.
    • Fine Focusing Adjustment Range: 30mm.

    Frame – Base – Size – Weight

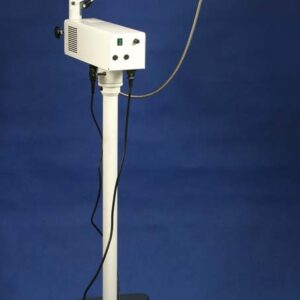

    • Heavy Solidly Built Articulating Boom Stand.
    • Ships in Three Boxes. Instrument Weight 44.5.
    • Maximum Stretching Radius of Arm: 870mm.
    • Vertical Movement Range (from floor to front surface of objective): 700 – 1100mm.

    Options

    • Optional Beam Splitter and 1/2 Inch CCD Camera Adapter for Connecting Video Equipment for Display on a CCTV Monitor.

    Additional Information

    • Manufactured under ISO: 9001 Standards.
    • Protective Molded Styrofoam Container.
    • Precision Ground Glass Lens.
    • Quality Construction, Metal Frame.
    • 110 VAC (email about 220V availability).
    • 100% Brand New!

    1-Year Manufacturer’s Warranty

    • The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
    • If your system needs repair, simply let us know and we will see that it is back in service ASAP.

    Warning

    •  Be careful about buying used equipment that might have scratched optics, delamination, missing/broken parts, dust/dirt on internal optics, head out of alignment (slight double vision, common!), bio-contamination, degradation of lubrication, and impossible-to-find or expensive replacement components on obsolete models. Just like buying an old car, the high cost of maintenance alone must be considered when making a purchase. I you buy used, what will you do if the light goes out and it’s not a burnt bulb? Microscope Repair is VERY Expensive!
