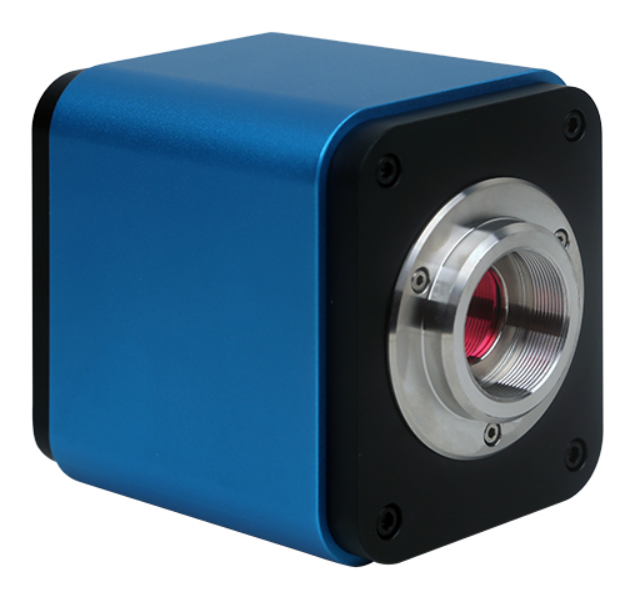

High-Resolution and High Frame Rate HDMI Microscope Camera
Call For Price
Product Overview
- Through the standard HDMI interface to stream the video to displayer or HDTV. Easy connecting to other equipment on the production line with the C-mount optical interface.
- High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.
- 1280 × 720 (720P) resolution to match the current high-definition displayer on the market.
- Supporting various OSD cursors which can be toggled On/Off (functions shift as users press the button). The OSDs including: scale, double horizontal line, double vertical line, double cross line, Tri-cross line.
- The other function buttons including automatic white balance and exposure on/off (AEWB), saving images to SD card (SAVE), video stream and freeze on/off (FREEZE), remote image snapshot controller to reduce the vibration blur (REMOTE).
- For the above characteristic and technical features, which utmost meet various applications and widely apply to industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
Specifications
| ORDER CODE | SENSOR & SIZE(MM) | PIXEL(ΜM) | G RESPONSIVITY DYNAMIC RANGE SNRMAX |
FPS/RESOLUTION | BINNING | EXPOSURE |
|---|---|---|---|---|---|---|
| XCAM0720PHA XP00720HA |
MT9P031(C) 1/2.5″ (5.70×4.28) |
2.2×2.2 | 1.4 V/lux-sec 70.1dB 38.1dB |
30@1080×720 | 1×1 | 0.21ms~33ms |
HARDWARE CONFIGURATION
| Spectral Range | 380-650nm (with IR-filter) |
| White balance | Auto / Manual |
| Color Rendering Technique | Ultra Fine Color Engine |
| Cooling System* | Natural |
| INTERFACE & BUTTON FUNCTION | |
|---|---|
| RED Button | Cursor ON/OFF |
| BLUE Button | Save Image to SD Card |
| YELLOW Button | AEWB ON/OFF |
| WHITE Button | VIDEO Stream/Freeze |
| INTERFACE | 1X VGA Output Port1X SD Card Slot
1X Power Input Slot 1X Remote Switch Slot |
| OVERALL DIMENSIONS | |
| Width X Depth X Height | 68mm (2.67″) X 68mm (2.67″) X 92mm (3.62″) |
| Shipping Weight | 0.25 kg (0.55lbs) |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10℃~ 50℃ |
| Storage Temperature | -20℃~ 60℃ |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| OPTIONAL ACCESSORIES | |
| Lens | C-mount Lens |
| Cable | VGA Cable |
| Memory Card | SD Card |
| Remote Image Save Switch | 2.5mm Headphone Jack Remote Image Save Switch |

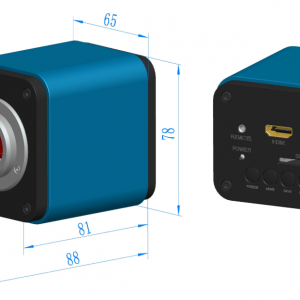

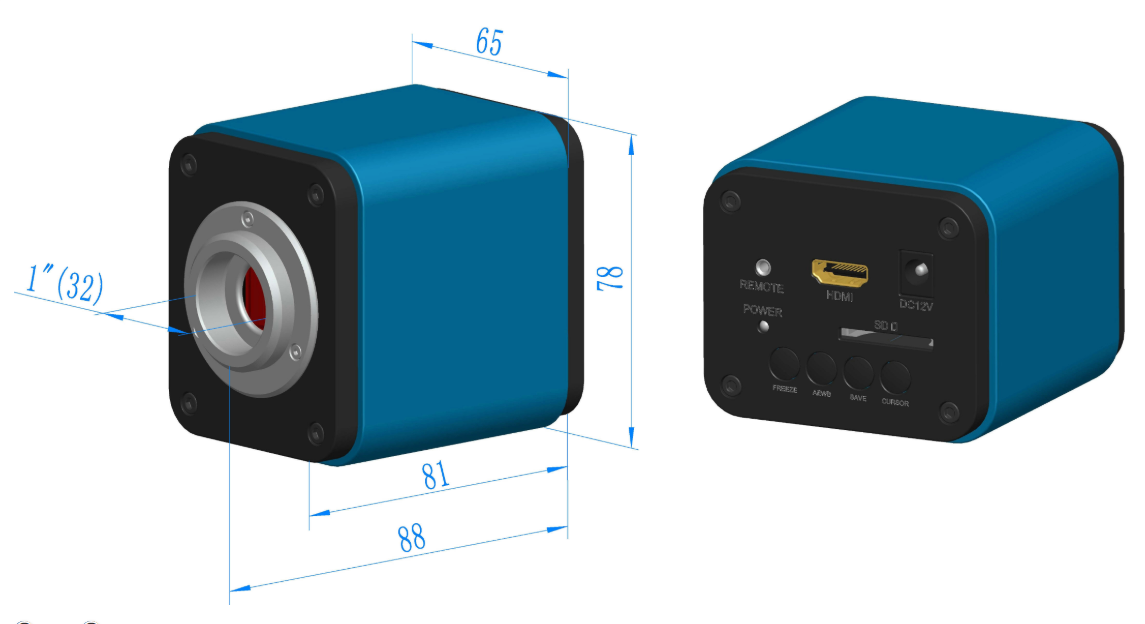

Dimension XCAM0720PHA
Installation drawings(Click to enlarge). The XCAM0720PHA HDMI CMOS camera body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

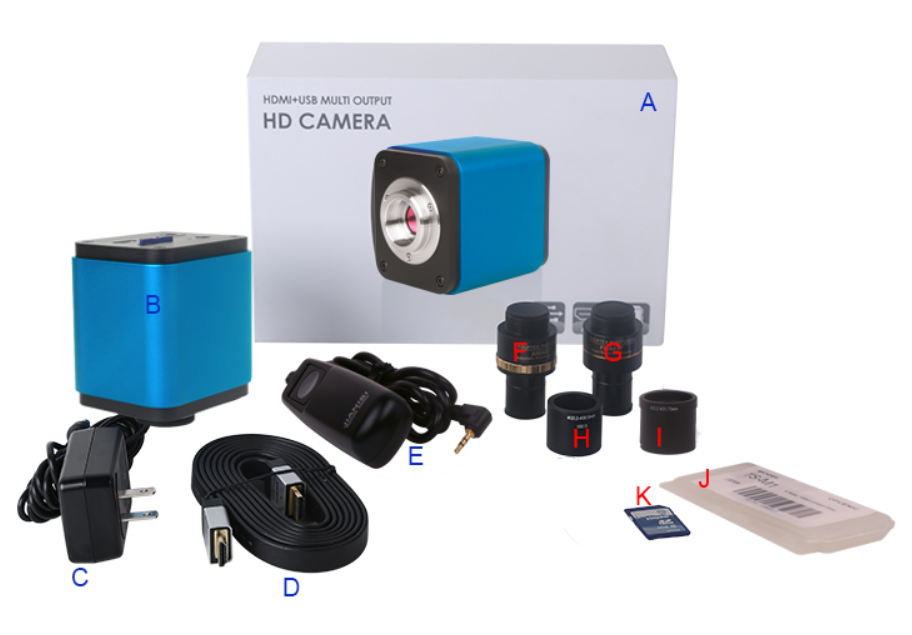

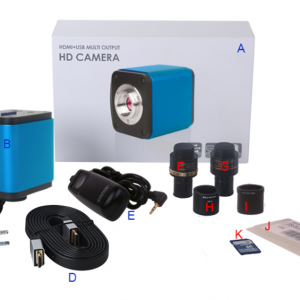

Included Items
- Includes: CCD Camera, Easy-to-Use HD TV Viewing , SD Card storing digital Images and HDMI Cable.
- Only B,C,D & K Item is included shown on the gallery pictures.
- Does Not Include Microscope or Computer.
Additional Information
- Manufactured under ISO: 9001 Standards.
- Quality Construction.
- 100% Brand New!
1 Year Manufacturer’s Warranty
- The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
- If your system needs repair, simply let us know and we will see that it is back in service ASAP.
