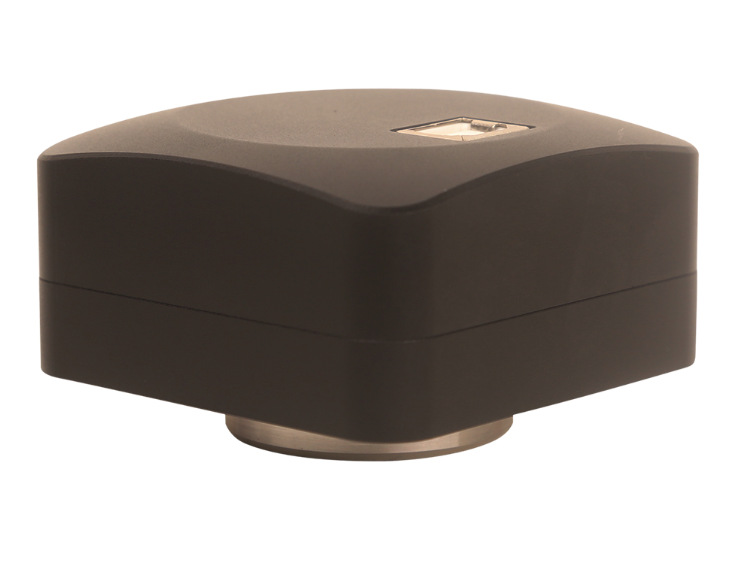

Five Megapixel High Resolution Digital Microscope Camera Live Video + Still Image Capture! Usb Computer Connectivity!

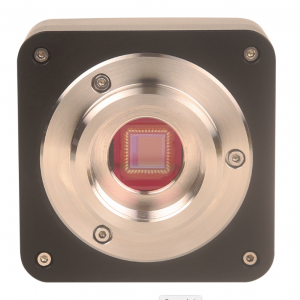

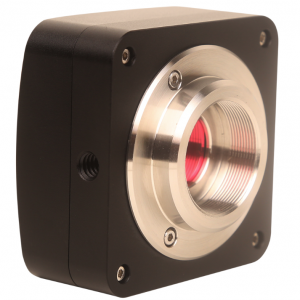

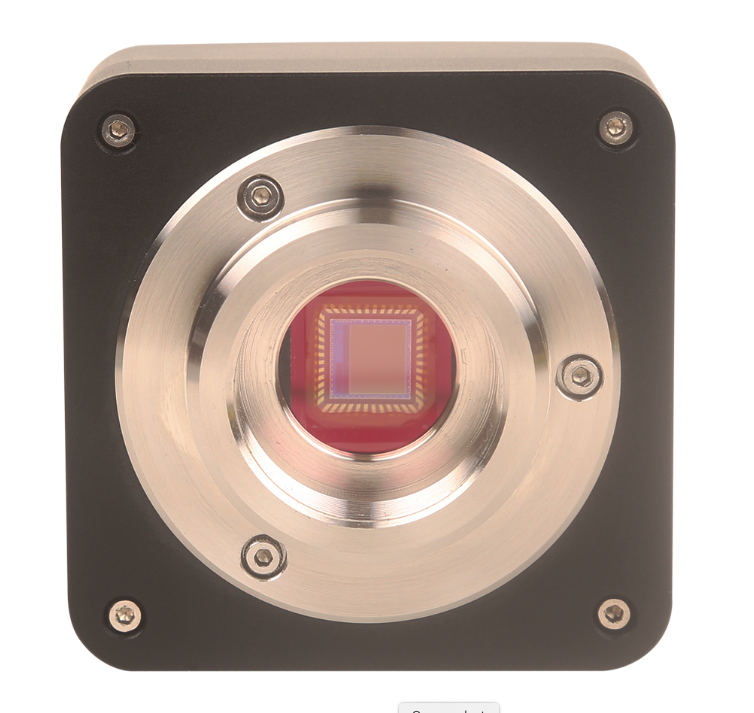

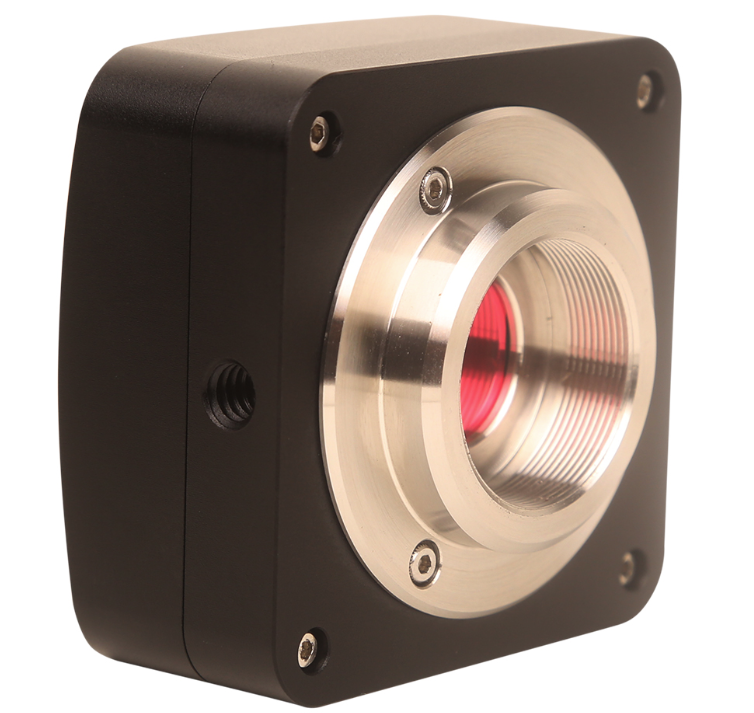

U3CMOS Series C-mount USB2.0 CCD Camera

- 5 Mpixel Ultra High Resolution Color Video Digital Camera for Microscope!

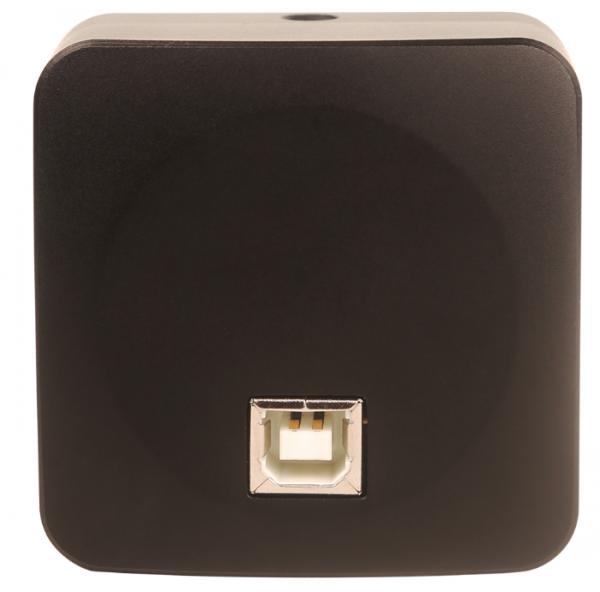

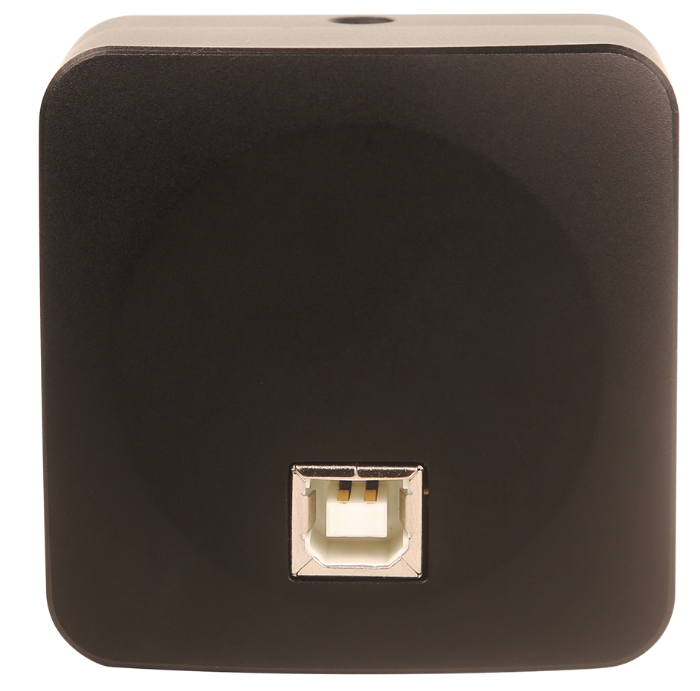

- Easy and Convenient USB 2.0 Computer Connection!
- Display and Capture Live Video and Digital Still Microscopic Images on Computer.

Specifications

Capture Stunning 2592 x 1944 Pixel Maximum Resolution Digital Still Images!
High Quality Image with 1/2″ CCD Digital Microscope Camera DSP CMOS Sensor!
Capture and Display Live Full Motion Digital Video from Microscope!
Video Frame Rate at maximum resolution: 2 FPS. Faster at lower resolutions
Video Frame Resolutions: 2592 x 1944 pixels, 1280 x 1024 pixels, and 800 x 600 pixels.
True Color Image, 1.64 Million colors, 24 Bit color. Automatic Exposure and Shutter Control.
File Format: JPG, BMP, TIFF, PICT, SFTL, etc. Wavelength Sensitivity: 400nm to 1000 nm.
Image Control: Color-Brightness / Gamma Correction / Exposure – Sharpness Adjustment / Auto.
White Balance: Automatic or Manual. Sensitivity: 0.8V / lux-sec @ 550 nm.
Power Source: Obtains power from USB2.0 port. Computer System Requirement: Windows 2000 / Win XP (SP2).
Reduction Lens System built into the microscope camera. This lens system is important to give a more realistic microscopic image that isn’t too magnified. USB Interface for Direct Microscope Camera Connection to Computer!
Simple to Use. Load the Eyepiece Camera’s Driver and Microscopic Image Editing Software, Plug Camera into Your Computer’s USB Port, and you’re Taking Pictures! Able to connect to the top trinocular microscope port, or through a microscope ocular eyepiece opening.

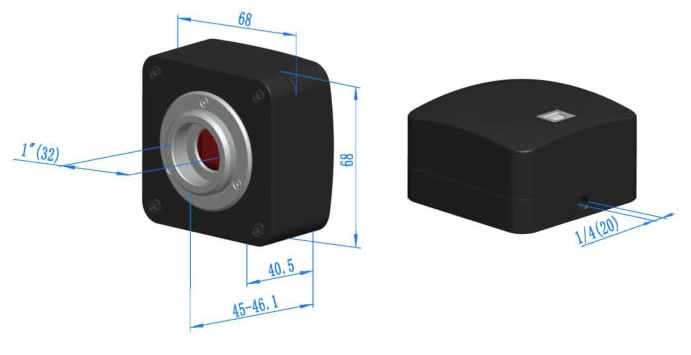

Connects to standard 23mm ocular openings of biological compound light microscopes as well as includes adapters for connecting to 30mm and 30.5mm ocular openings of stereoscopic binocular microscopes

UHCCD: ToupTek UHCCD is an ultra-high performance HAD CCD camera. The camera adopts Sony Super HAD CCD sensor as the image-picking device; The Super HAD CCD is a version of Sony’s high performance CCD HAD (Hole-Accumulation Diode) sensor with sharply improved sensitivity by the incorporation of a new semiconductor technology developed by Sony Corporation. USB2.0 is used as the data transfer interface.

UHCCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The UHCCD can be widely used in brightfield light environment and microscope image capture and anaysis.

OTHER HARDWARE CONFIGURATION
Spectral Range	380-650nm (with IR-filter)
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control API	Native C/C++, C#/VB.NET, Directshow, Twain, Labview
Recording System	Still Picture and Movie
Cooling System*	Natural
OPERATING ENVIRONMENT
Operating Temperature	-10℃~ 50℃
Storage Temperature	-20℃~ 60℃
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB port: USB2.0 High-speed Port
	Display: 17″ or Larger
	CD-ROM

1 Year Manufacturer’s Warranty

The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
If your system needs repair, simply let us know and we will see that it is back in service ASAP.
