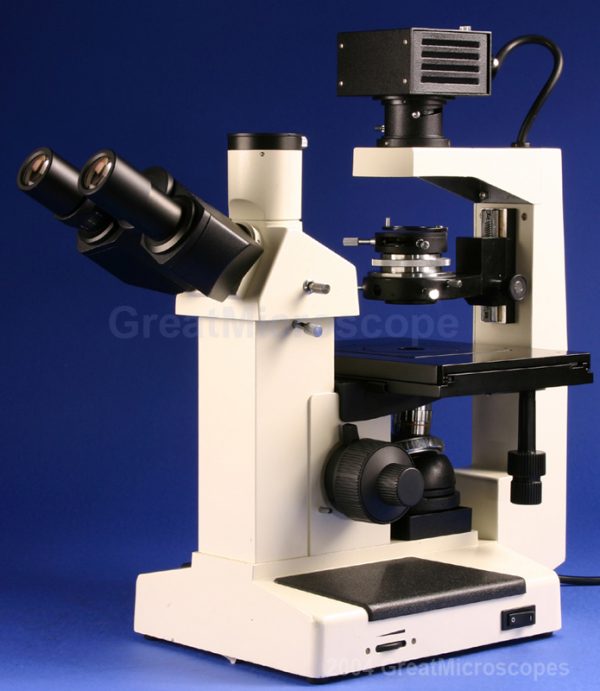

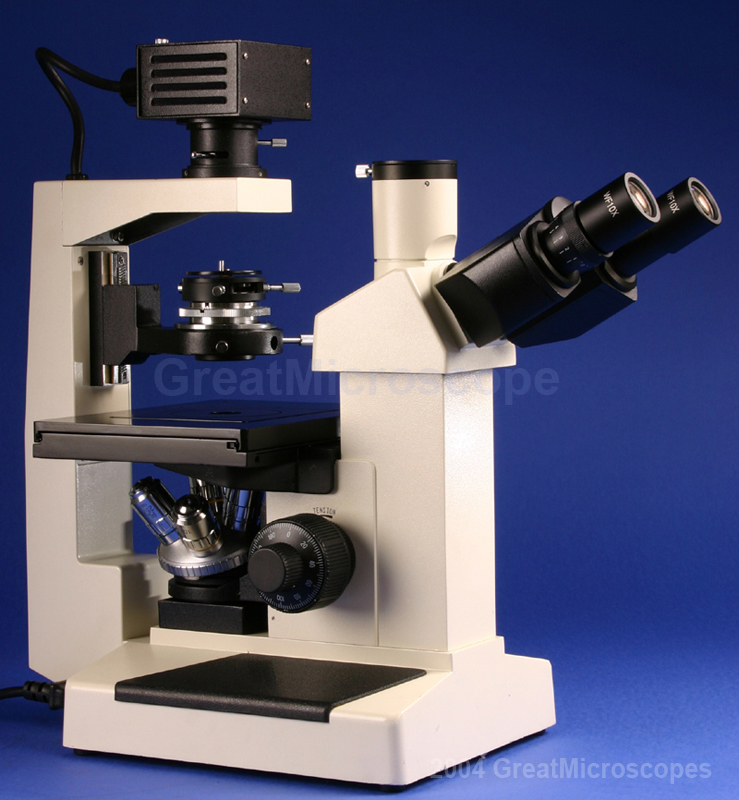

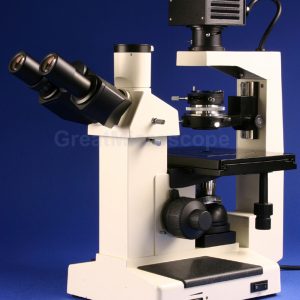

    100x – 400x INVERTED TRINOCULAR TISSUE CULTURE MICROSCOPE W/ PHASE CONTRAST CAPABILITY + 3MPIXEL USB DIGITAL CAMERA + STAGEMICROMETER w/RETICLE

    Call For Price

    SKU: hm0012000m Category:

    Product Overview

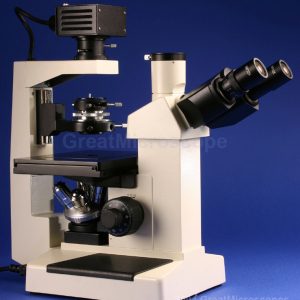

    • High Quality Professional Trinocular Inverted Tissue Culture Microscope!
    • Research Grade Performance with Highly Advanced Features and Optics!
    • Ideal for Tissue Culture and Cellular Biology!
    • Great for Viewing Live Biological Tissue Cultures in Petri Dishes!
    • Inverted Design allows for Viewing from the Bottom of the Dish. Perfect for Examining Liquid Deposits!
    • Both Brightfield and Phase Contrast Observation!
    • Phase Contrast is Great for Observing Translucent Low Contrast Specimens!
    • Long Working Distance Objectives Designed Specifically for the extra thickness of the dish’s bottom.
    • Compare to Similar Units costing $4000+ with name brands!
    • Excellent Bright and Clear Images through High Quality Optics.

    Video and Photography

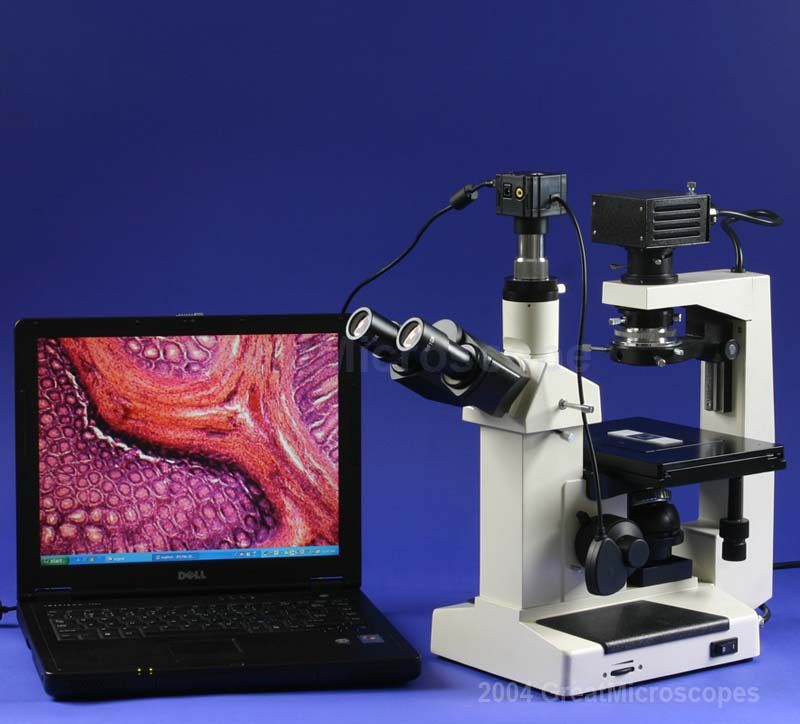

    • High Resolution 3.1 MegaPixel Digital Camera System.
    • Complete Digital Microscopy Solution Included.
    • Capture high resolution digital microscope images, 2048×1536 pixels.
    • View and record full motion live video microscope images. Frame size options for video mode: 2048X1536 (up to 11 FPS, depending on PC), 1024 X 768, 640 X 480, 512 X 384.
    • Computer connected digital microscope camera connects via USB2.0. Includes USB cable and MS Windows software.
    • Color DSP built into camera provides sharp quality color images. Image sensor size is half inch.
    • Includes measuring capability with the software.

    FREE Bonus
    • FREE Microscope Measuring Kit Included: $350 Value!
    • Includes: Stage Micrometer with 1mm in 100 divisions, 0.01mm resolution for precise calibration of measuring reticle.
    • Includes: Extra WF10x Eyepiece with Built-In Measuring Reticle, X-Scale, 10mm in 100 divisions, 0.1mm Resolution.
    • Call Us Today to Discuss Your Measuring Needs and How This Microscope Will Work for You!

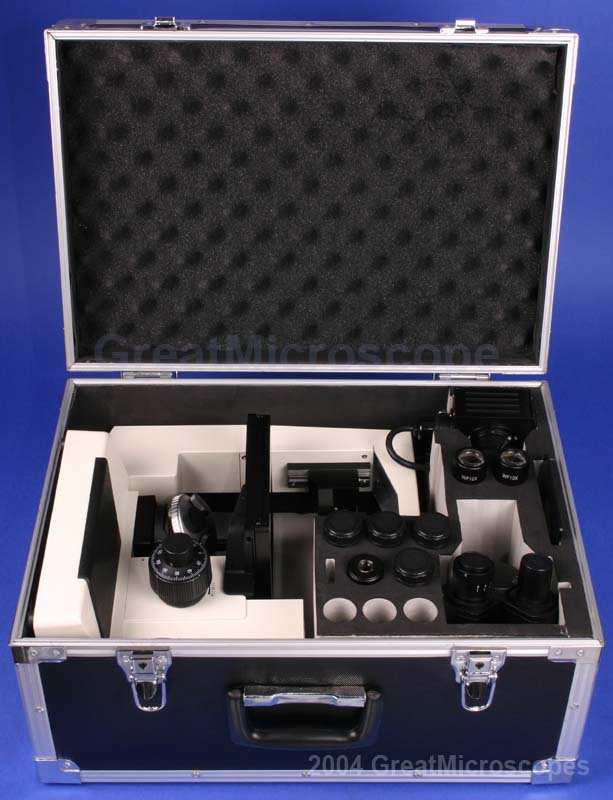

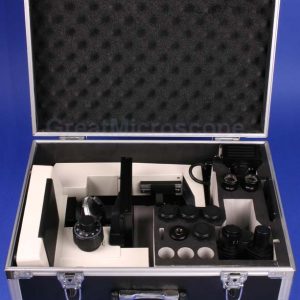

    • BONUS: Includes a carrying case with Precut Foam for safe transportation of your precision instrument.

    Eyepieces and Magnification
    • Three Magnifications: 100x, 250x, and 400x.
    • Eyepiece Set Included: Wide Field 10x.

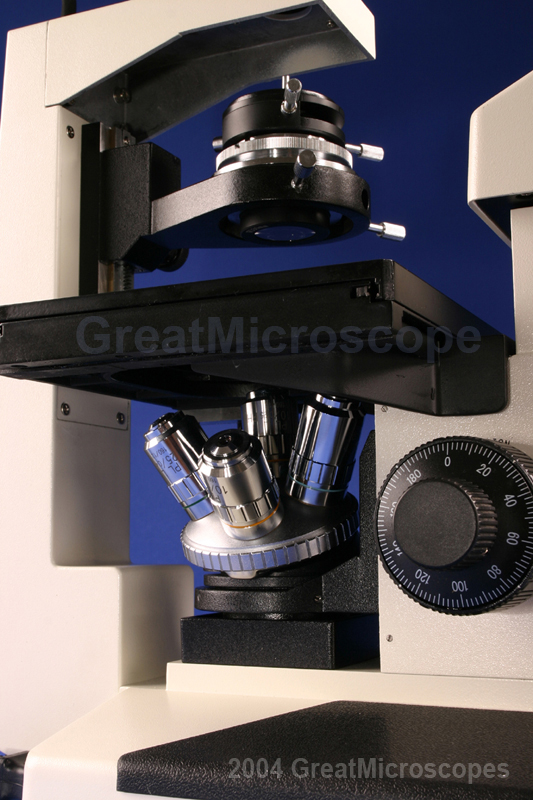

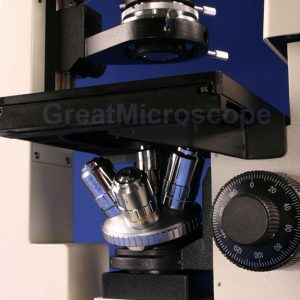

    • Four PLAN Long Working Distance DIN Objectives.
    • Brightfield Objectives (Three): 10x (0.25 N.A., 8.1mm W.D.), 25x (0.4 N.A., 4.8mm W.D.), 40x (0.6 N.A., 3.3mm W.D.).
    • Phase Contrast Objective (One): 10x (0.25 N.A., 8.1mm W.D.).
    • Phase Annulus Ring for 10x.
    • Objectives Designed for Cover Glass Thickness 1.2mm (bottom of glass dish).
    • Optional (Not Included) 25x and 40x Phase Objectives with Phase Annulus Rings.
    • These PLAN Objectives are Superior Quality and the Most Expensive. The Achromatic and Semi-Plan as Found on Other Scopes are the Cheaper Quality.

    Illumination
    • Variable Intensity 20W Halogen Illumination in Upper External Housing.
    • Light Collector Field (Iris) Diaphragm with Light Collector Adjustment.
    • Lamp Centering Knobs for Precision Alignment of Light Source for Optimal Images.

    Head – Interpupillary Distance – Diopter

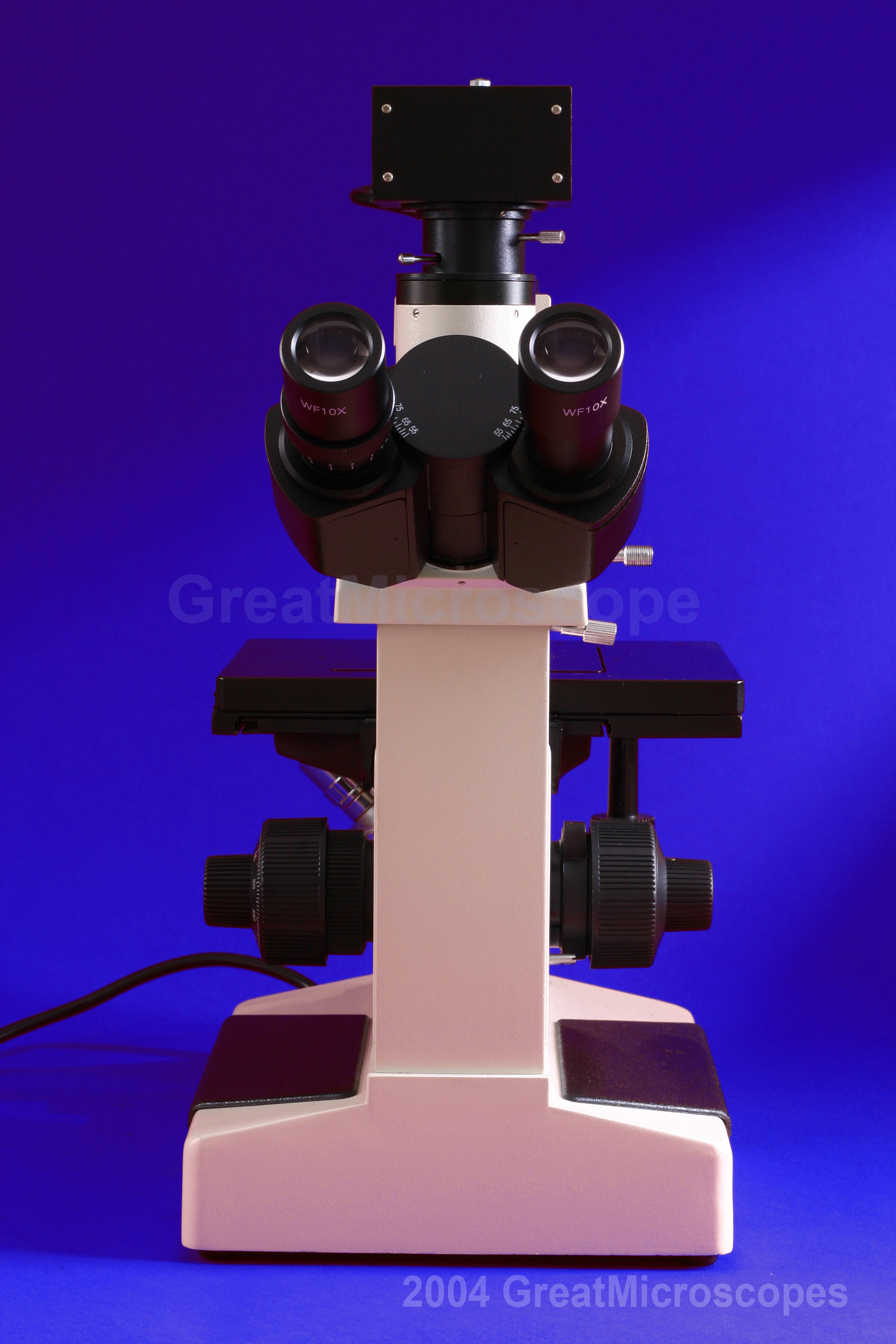

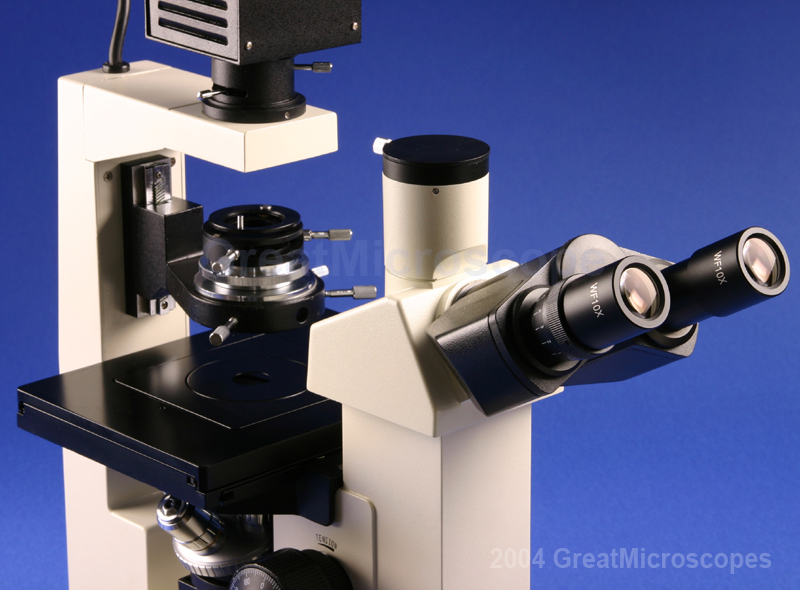

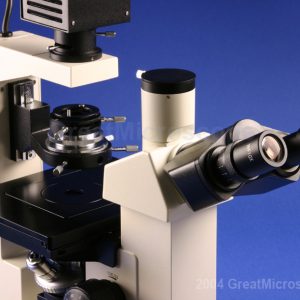

    • 30 Degree Inclined Trinocular Head (Easier to View than 45 Deg.).
    • Adjusts to the Distance Between your Eyes: 53 to 75mm InterPupillary Distance.
    • Diopter Adjustment to Correct for Your Specific Vision Needs.

    Condenser – Iris – Filters

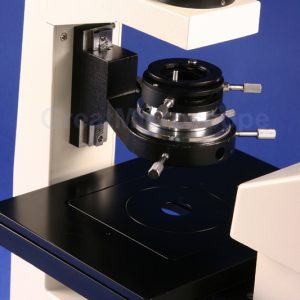

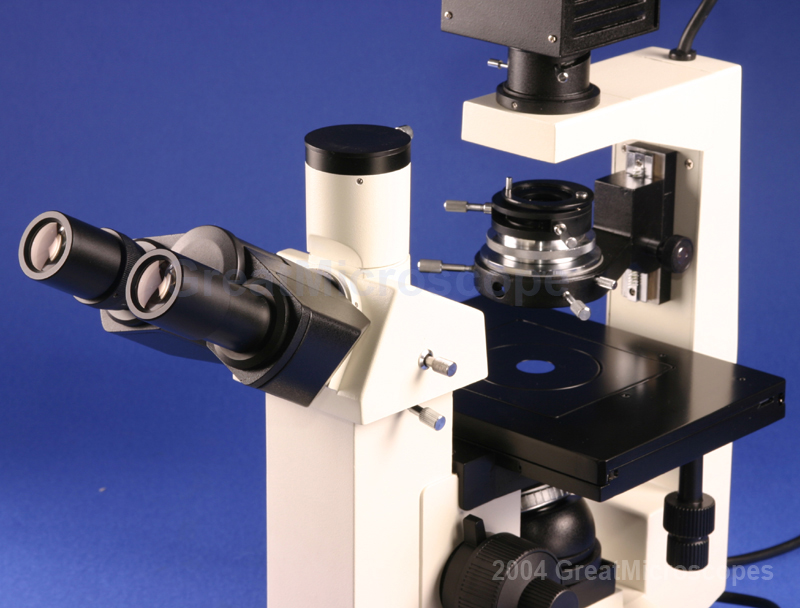

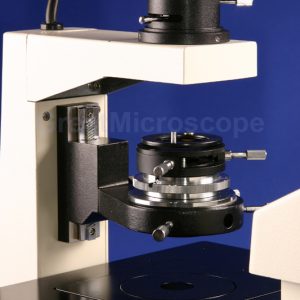

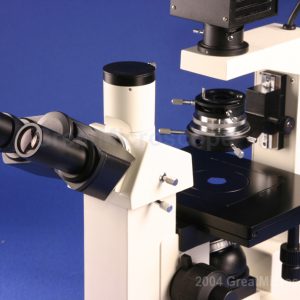

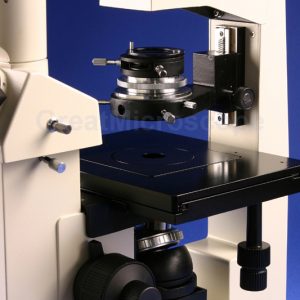

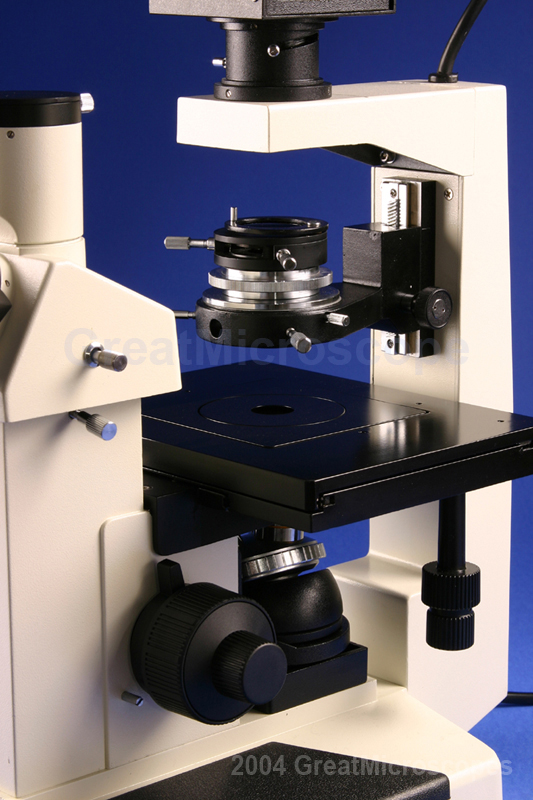

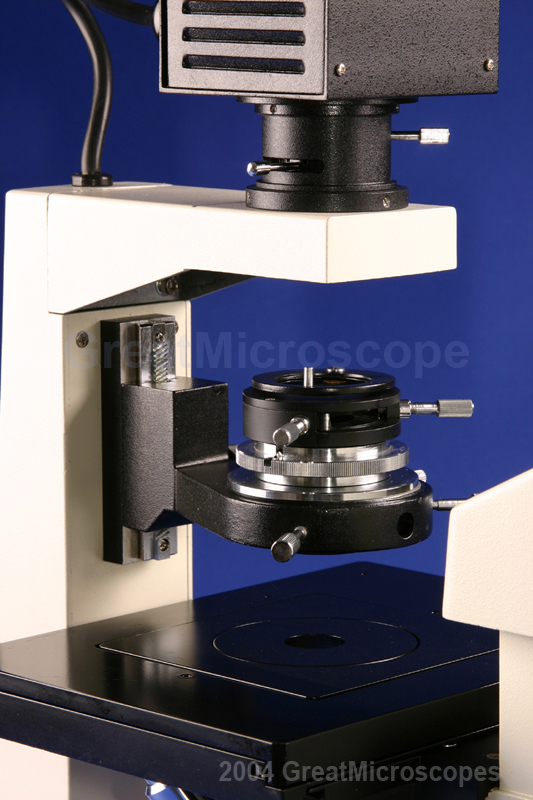

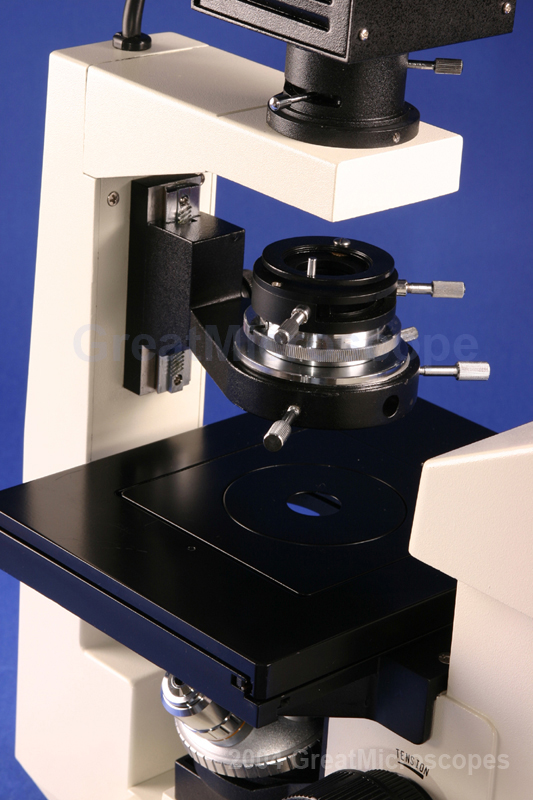

    • Above-Stage Long Working Distance (30mm) Condenser, 0.4 N.A., with Iris Diaphragm and Swing-Out Filter Holder.
    • Phase Annulus Ring Slot in Condenser with Ring Centering Knobs for Alignment of Phase Rings for Optimal Phase Contrast Performance.
    • Condenser Centering Knobs for Precise Positioning of Condenser Over Objective.
    • Three Filters Included: Blue, Green, and Frosted White.
    • Rack and Pinion Steel Gears with Knob to Easily Move Condenser Up and Down Relative to Stage.

    Stage Specifications
    • Large Mechanical X-Y Movable Stage: Size 200 x 152mm.
    • Low Position Coaxial X-Y Stage Movement Knobs – Range of Movement: 78mm (X-Direction) x 36mm (Y-Direction).

    Focusing
    • Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
    • Coarse Adjustment Travel Range: 20mm (Objective Nosepiece Movement Distance Up/Down).
    • For Optimal Performance when Focusing, the Objectives move Up/Down Instead of the Stage.
    • Fine Adjustment Division 0.002mm.
    • Adjustable Lock Ring Stop to Limit Coarse Range to Protect Objectives and Specimens.
    • Tension Adjustable Coarse Focusing.

    Frame – Base – Size – Weight
    • Total Overall Height of Microscope: 425 mm.
    • Instrument Weight: 21 lbs.

    Included Items
    • Includes Centering Telescope for Phase Contrast Work.
    • Includes: Instruction Manual, Extra Bulb and Fuse.

    Other Specifications
    • Manufactured under ISO: 9001 Standards.
    • 220 VAC Power Requirement.
    • High Quality Solid Construction!
    • Precision Made Glass Optics!
    • Brand New, Never Used!

    Manufacturer’s Warranty
    • Warranty is 1 years on all microscope equipment.
    • The microscope warranty covers problems arising from normal usage.
    • We will repair or replace your defective microscopy equipment as needed during the warranty period.
